Remove/install tensioning rail and slide rail in timing case cover - AR05.10-P-8500CMG
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 156 in MODEL 204, 212
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Remove/install | |||
| 1 | Remove engine | MODEL 204 | AR01.10-P-2400CMG |
| MODEL 212 | AR01.10-P-2400EMG | ||
| 2 | Detach transmission from engine | Model 212 with transmission 722.9 | AR27.10-P-0500EV |
| Model 204 with transmission 722.9 (except 722.96/997) | AR27.10-P-0500CV | ||
| 3 | Mount engine onto assembly stand | ||
| 4 | Remove timing case cover | AR01.40-P-8000AMG | |

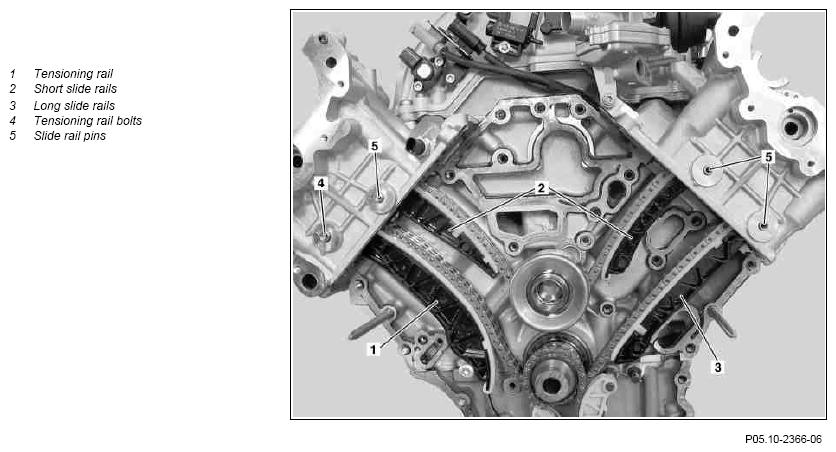

| 5 | Remove tensioning rail bolt (4) and slide rail bolt (5) | AR01.30-P-5800-04AMG | |
| Figure | |||
| Figure | |||
| 6 | Remove tensioning rail (1) and slide rails (2, 3) from the bottom | ||
| 7 | Install in the reverse order |
