Pull out guide rail pins at cylinder head - AR01.30-P-5800-04AMG

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 156

Fig 1: Identifying Impact Extractor (116 589 20 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Threaded Pin (116 589 01 34 00)

Courtesy of MERCEDES-BENZ USA

Left-hand cylinder head

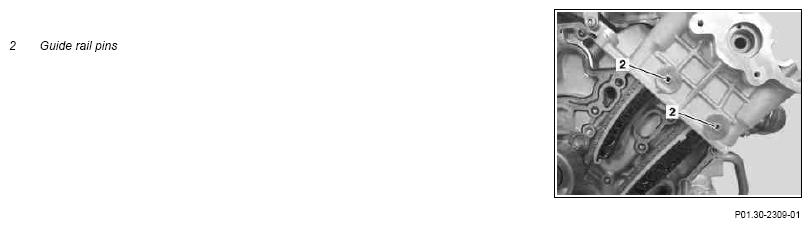

Fig 3: Left-Hand Cylinder Head Guide Rail Pins

Courtesy of MERCEDES-BENZ USA

Right-hand cylinder head

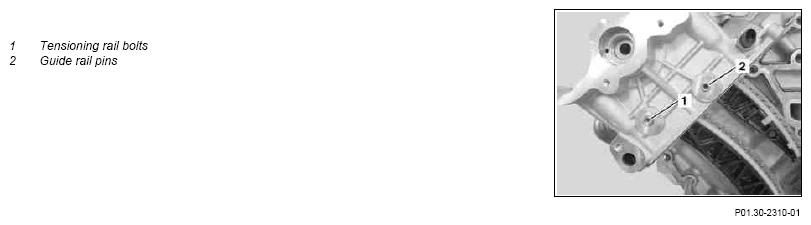

Fig 4: Right-Hand Cylinder Head Guide Rail Pins And Tensioning Rail Bolts

Courtesy of MERCEDES-BENZ USA

Guide rail pins (2) are removed in the same way as tensioning rail bolts (1).

Only pull out tensioning rail bolts (1) or guide rail pins (2) with impact extractor in order to avoid damaging contact surface of front cover.

Screw threaded insert into den tensioning rail bolts (1) or guide rail pins (2) and pull out corresponding bolts (1) with impact extractor.
