Remove/install hydraulic valve clearance compensating elements - AR05.00-P-2011EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 272, 273 in MODEL 212

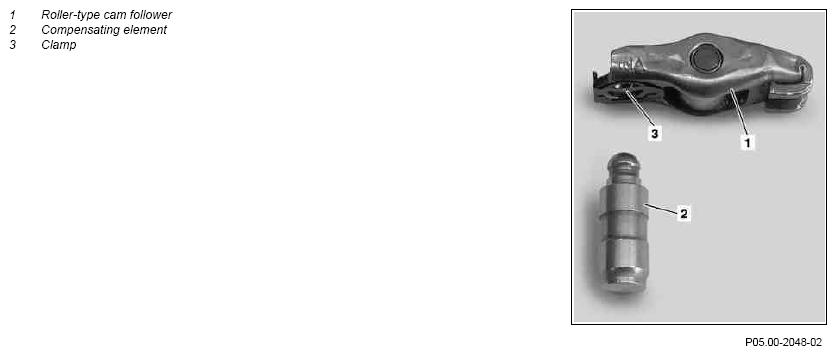

Fig 1: Hydraulic Valve Clearance Compensating Elements Remove/Install Components - Engine 272

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove camshafts		AR05.20-P-6992EW
2	Take out roller-type cam follower (1) with compensation element (2)	If removing more than one compensation elements, ensure that cam followers and compensation elements not being replaced are re-installed at their previous location. Mark the cam follower for the corresponding compensation element is necessary. Oil the cam follower and compensation element.
3	Detach clamp (3) by hand and remove compensation element (2) from roller-type cam follower (1)
	Checking
4	Check compensation element (2) for proper operation, replace if required	Press compensation element together by hand only; do not use steel tools as these can damage the surface of the compensation element. The compensating element should be pressed together very slowly with the normal force of the hand. Do not apply strong pressure. If several compensation elements are defective, check pressure oil supply to the cylinder head.
5	Install in the reverse order
	Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
6	Carry out an engine test run and check engine for leaks
