Remove/install camshafts - AR05.20-P-6992EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 272, 273 in MODEL 212
| Remove/install | |||
| The ground line on the battery must always be detached before beginning work on the fuel system otherwise pressure will be lost in the fuel system through opening a vehicle door or the trunk lid | Model 212.057 | ||
| Remove intake camshafts | |||

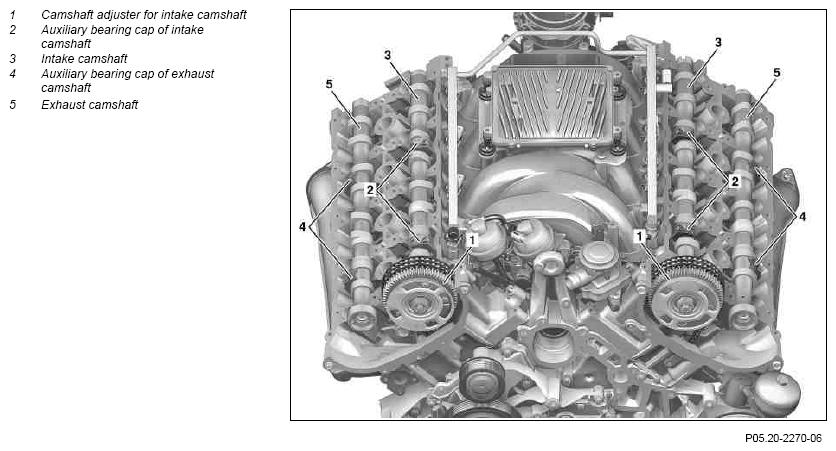

| 1 | Remove respective camshaft adjusters (1) | AR05.20-P-7201EWE | |
| 2 | Remove auxiliary bearing cap (2) and intake camshaft (3) | *BA05.20-P-1010-02A | |
| Remove exhaust camshafts | |||
| 3 | Remove respective camshaft adjusters | AR05.20-P-7201EWA | |
| 4 | Remove respective cylinder head cover | Right cylinder head cover, except model 212.057 | AR01.20-P-5012EL |
| Right cylinder head cover, model 212.057 | AR01.20-P-5012ELD | ||
| Left cylinder head cover, except model 212.057 | AR01.20-P-5013EL | ||
| Left cylinder head cover, model 212.057 | AR01.20-P-5013ELD | ||
| 5 | Take off auxiliary bearing cap (4) and remove exhaust camshaft (5) | *BA05.20-P-1010-02A | |
| 6 | Install in the reverse order | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 7 | Conduct engine test run and check engine for leaks |
CAMSHAFT, CAMSHAFT ADJUSTMENT
| Number | Designation | Engine 272 | Engine 273 | ||
|---|---|---|---|---|---|
| BA05.20-P-1010-02A | Bolt, auxiliary bearing cap to cylinder head | Stage 1 | Nm | 8 | 8 |
| Stage 2 | ∠° | - | - | ||
