Remove/install hydraulic valve clearance compensating elements - AR05.00-P-2011EL

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 157, 276, 278 in MODEL 212, 218

MODIFICATION NOTES

25.3.14

Adapted to changed repair method

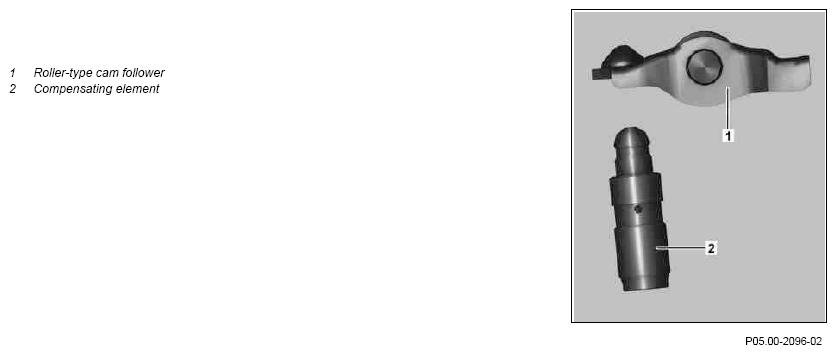

Fig 1: Hydraulic Valve Clearance Compensating Elements Remove/Install Components - Engine 157

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove camshafts	The camshaft positioners remain on the camshafts.	AR05.20-P-6992EL
2	Remove roller cam follower (1) and compensating element (2)	When removing several compensating elements (2) make sure that roller-type cam follower (1) with compensation elements (2), which were not replaced, are reinstalled at the previous fitting point. Mark the roller cam follower (1) for the corresponding compensating element (2) if necessary. Lubricate roller cam follower (1) and compensating element (2).
	Check
3	Check that compensating element (2) is functioning properly, and replace if necessary	Only push compensating element (2) together by hand, do not use a steel tool. The surface of the compensating element (2) can get damaged otherwise. The compensating element (2) should not allow itself to be pressed together by the normal force of the hand and also only slowly when using a strong force. Check the pressure oil supply to the cylinder head if more than one compensating element (2) is defective.
4	Install in the reverse order
	Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
5	Carry out an engine test run, checking the engine for proper operation and leaktightness
