Overview of system components for windows and sightproofing - GF67.00-P-9999FL
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212

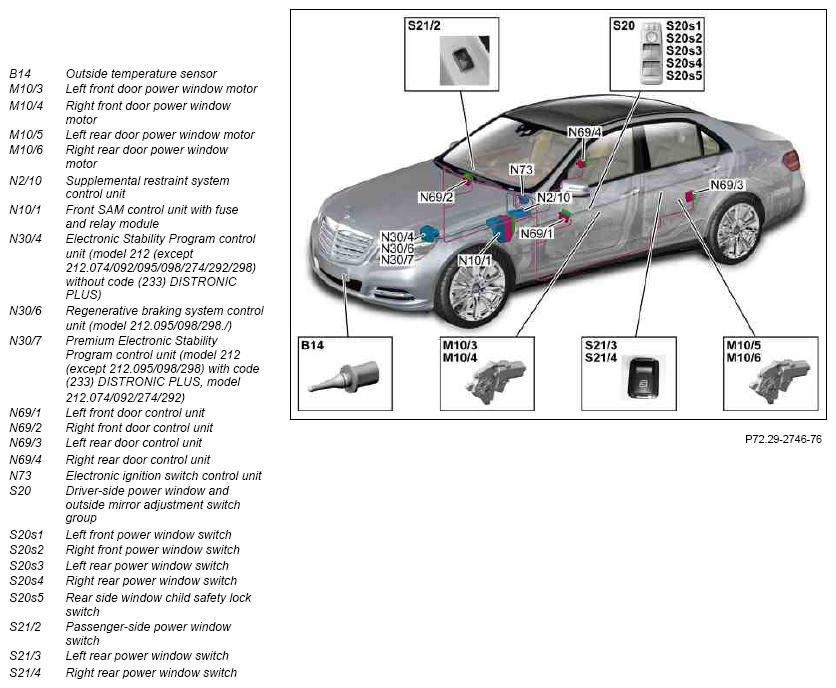

Power window, shown on model 212.0

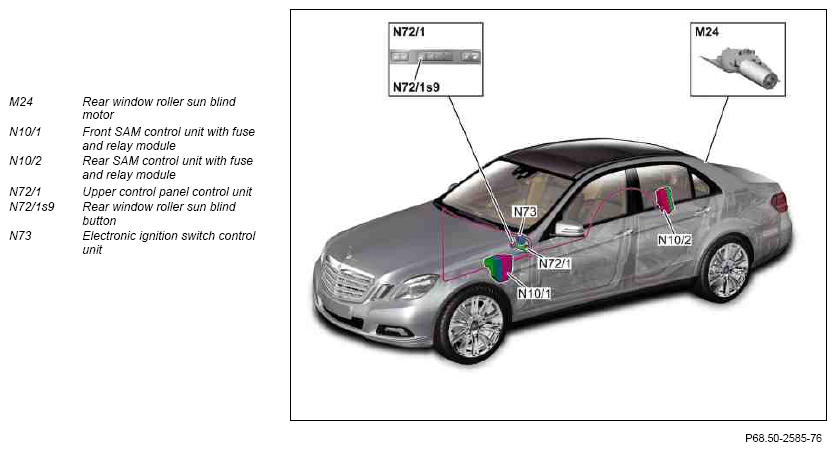

Roller sun blind (with code (540) Electric roller blind for rear-end window), shown on model 212.0
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080FL | |
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070FL | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030FL | |
| Component description for Electronic Stability Program control unit | MODEL 212 (except 212.095/098/298) up to model year 2014 N30/4, N30/7 |
GF42.45-P-5119FL | |
| MODEL 212 (except 212.095/098/298) as of model year 2014 N30/4, N30/7 |
GF42.45-P-5119FLM | ||
| Component description for regenerative braking system control unit | MODEL 212.095/098/298 up to model year 2014 N30/6 |
GF42.22-P-1100FLH | |
| MODEL 212.095/098/298 as of model year 2014 N30/6 |
GF42.22-P-1100FLM | ||
| Component description for left front door control unit | N69/1 | GF72.29-P-6001FL | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009FL | |
| Component description for rear door control unit | N69/3, N69/4 | GF72.29-P-6021FL | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040FL | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FL | |
| Table of contents for function description of windows and sightproofing | GF67.00-P-0999FL |
