Remove/install trunk lid - AR88.50-P-5000EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0/1, 218.3

Shown on model 212.0/1

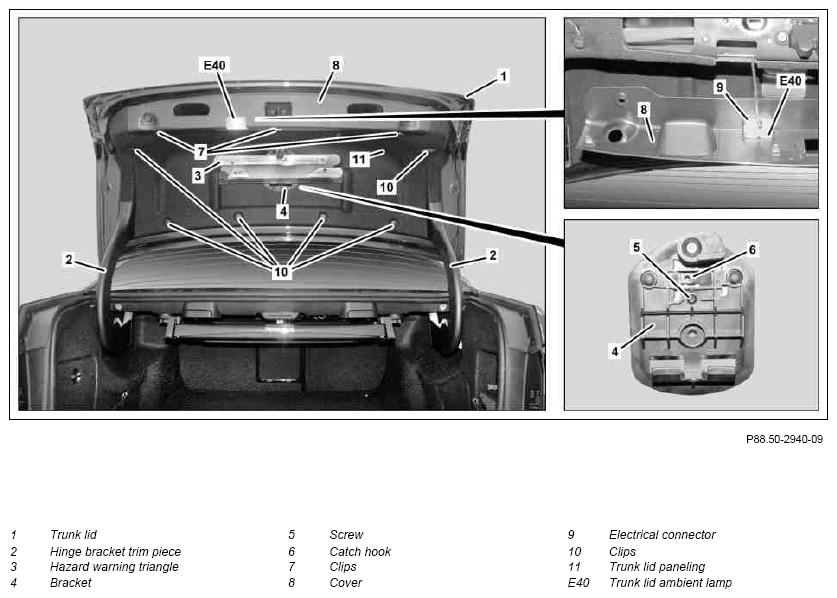

Fig 1: Trunk Lid Remove/Install Components - Shown On Model 212.0/1
G09977916Courtesy of MERCEDES-BENZ USA

Illustrated on model 218.3

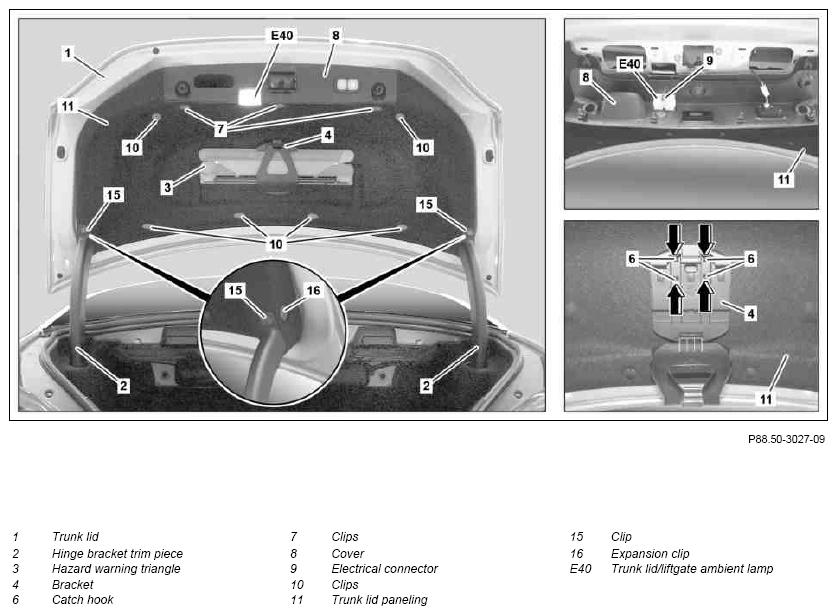

Fig 2: Trunk Lid Remove/Install Components - Shown On Model 218.3
G09977917Courtesy of MERCEDES-BENZ USA

Shown on model 212.0/1

Fig 3: Trunk Lid Remove/Install Components - Shown On Model 212.0/1
G09977918Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
DANGER Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. No parts of the body or limbs should be within the operating area when the components are moving. AS00.00-Z-0011-01A
IMPORTANT Notes on sensor system for trunk lid opening/closing   AH80.61-P-0001-01A
1.1 Remove hinge bracket trim piece (2) MODEL 212.0/1
1.2 Unclip clip (15) and detach hinge bracket paneling (2) MODEL 218.3
SPECIAL TOOL Clip remover Fig 4
2 Remove warning triangle (3) from bracket (4)
3 Remove screw/bolt (5) MODEL 212.0/1
4.1 Push catch hook (6) toward rear and remove bracket (4) MODEL 212.0/1
4.2 Press catch hook (6) in direction of arrow and remove bracket (4) MODEL 218.3
5 Unclip clips (7), unclip cover (8) with assembly wedge and remove until electrical connector on trunk lid ambient lamp (E40) is accessible SPECIAL TOOL Clip remover Fig 4
SPECIAL TOOL Mounting wedge Figure
6 Disconnect electrical connector (9) from trunk lid ambient lamp (E40) and remove cover (8) TORQUE SPECIFICATION The number of electrical connectors depends on the equipment installed.
7 Unclip clips (10) and expansion clip (16) IMPORTANT Expansion clips (16) only on model 218.3
SPECIAL TOOL Clip remover Fig 4
8 Detach trunk lid trim (11)
9 Disconnect electrical connector from electrical wiring harness (12) in trunk lid (1) IMPORTANT The number of electrical connectors depends on the equipment installed.
10 Remove electrical wiring harness (12) from trunk lid (1) and lay down to side
11 Remove screws/bolts (13) IMPORTANT Installation: Screw in bolts (13) only until trunk lid (1) can still be moved. These bolts (13) can be tightened after adjusting trunk lid (1).
12 Loosen screws/bolts (14) IMPORTANT Loosen bolts (14) only until trunk lid (1) can be removed.
IMPORTANT Installation: Screw in bolts (14) only until trunk lid (1) can still be moved. These bolts (14) can be tightened after adjusting trunk lid (1).
13 Remove trunk lid (1) out of the hinge levers upwards
14 Install in the reverse order
15 Adjust trunk lid (1)   AR88.50-P-5200EW
16 Calibrate reversing camera and 360° camera with STAR DIAGNOSIS MODEL 212.0/1, 218.3 with CODE 218 (reversing camera) MODEL 212.0/1, 218.3 with CODE 501 (360 degree camera)
REFER TO SELF-DIAGNOSTIC SYSTEMS AD00.00-P-2000-04A
Fig 4: Identifying Clip Remover (452 589 01 63 00)
G09977919Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Mounting Wedge (110 589 03 59 00)
G09977920Courtesy of MERCEDES-BENZ USA
