Remove/install spare tire well - AR88.30-P-1000EL
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212, 218
Illustrated on model 218.3
| Removing | |||
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury caused by slipping when inserting blade in the multicutter and by glass splinters when cutting out bonded windows | Always interrupt air supply when inserting or removing blade. Wear protective gloves and safety glasses. |
AS67.00-Z-0001-01A | |
| 1 | Prepare adhesive cartridge | AR67.10-P-1000-07P | |
| Repair kit, installing window, 2-component adhesive | *BR00.45-Z-1049-02A | ||
| 2 | Remove TIREFIT bracket | ||
| 3 | Remove luggage compartment lining | ||
| 4 | Remove spare tire | ||
| 5 | Remove power closing drive | Model 218 | |
| Model 212.0/1 | AR80.40-P-1000EW | ||
| 6 | Remove AdBlue tank | Model 212 with engine 642 with CODE (U42) Diesel exhaust treatment BlueTEC (SCR) |
AR14.40-P-2014OGE |

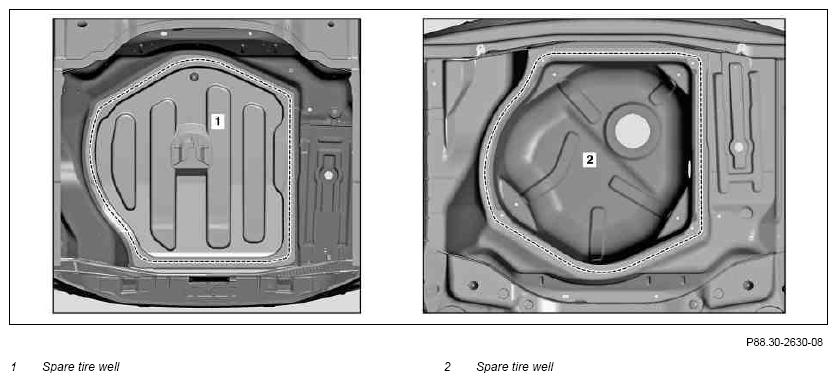

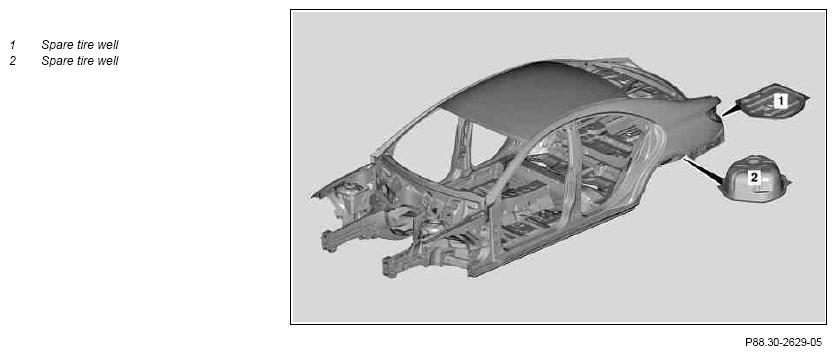

| 7.1 | Cut out spare wheel well (2) along separation line from below | On vehicles with CODE (U42) Diesel exhaust treatment BlueTEC (SCR) | |
Window glazing device, FSC 1.6 |
Fig 3 | ||
| 7.2 | Cut out spare wheel well (1) along separation line from above | On vehicles without Diesel exhaust treatment BlueTEC (SCR) | |
Window glazing device, FSC 1.6 |
Fig 4 | ||
| 8 | Prepare body flange for gluing in spare wheel well (1, 2) | Wet and dry vacuum cleaner | AR88.30-P-1000-03SX |
| Repair kit, installing window, 2-component adhesive | *BR00.45-Z-1049-02A | ||
| 9 | Apply adhesive on the adhesive flange at the new spare wheel wells (1, 2) | Electric cartridge gun |
|
| Repair kit, installing window, 2-component adhesive | *BR00.45-Z-1049-02A | ||
| 10 | Apply spare wheel wells (1, 2) on glue flange of body opening | ||
| Install | |||
| 11 | Install AdBlue tank | Model 212 with engine 642 with CODE (U42) Diesel exhaust treatment BlueTEC (SCR) |
AR14.40-P-2014OGE |
| 12 | Install power closing drive | Model 218 | |
| Model 212.0/1 | AR80.40-P-1000EW | ||
| 13 | Install spare tire | ||
| 14 | Install luggage compartment lining | ||
| 15 | Install TIREFIT bracket |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1049-02A | Repair kit, installing window, 2-component adhesive | A 168 670 00 93 |
