Remove/install outside mirror trim - AR88.70-P-9040CY

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 117, 156, 176, 204.3/9, 212, 218, 242, 246

MODEL 204.0## #A as of 213187

MODEL 204.0## #R as of 048423

MODEL 204.0##/2## #F as of 231783

MODEL 207.### ## as of 032555

MODEL 216 as of 6/1/09

MODEL 221 as of 6/1/09

Illustrated on model 204.9

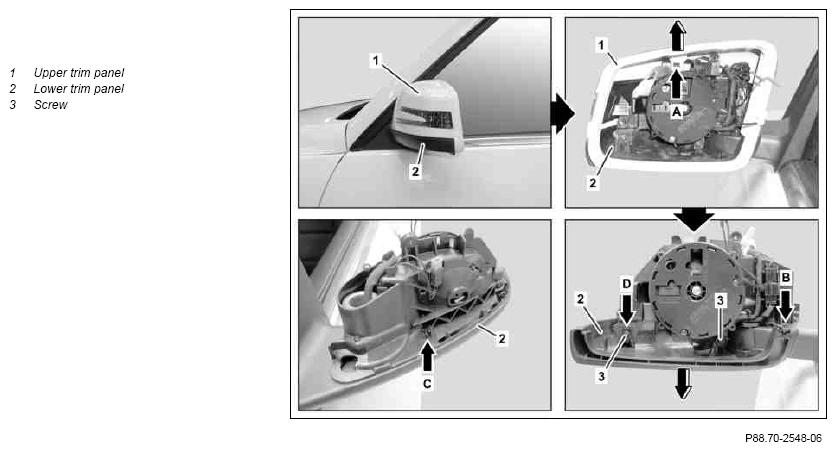

Fig 1: Outside Mirror Trim Remove/Install Components - Shown On Model 204.9

Courtesy of MERCEDES-BENZ USA

Shown on left outside mirror on MODEL 212 with CODE 501 (360 degree camera)

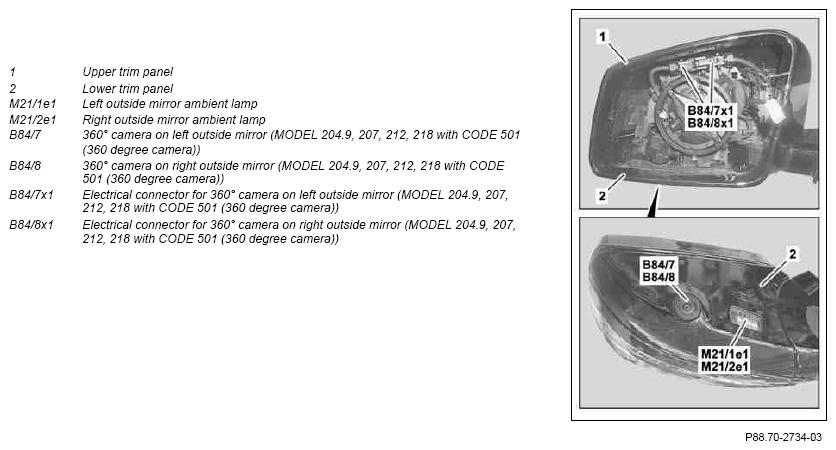

Fig 2: Outside Mirror Trim Remove/Install Components - Shown On Model 212 With Code 501

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove mirror glass on left and right outside mirror	MODEL 117, 156, 176, 242, 246	AR88.70-P-9020NKB
		MODEL 216 MODEL 221	AR88.70-P-9020TX
		MODEL 204.0## #A as of 213187 MODEL 204.0## #R as of 048423 MODEL 204.0##/2## #F as of 231783 MODEL 204.3/9, 212, 218 MODEL 207.### ## as of 032555	AR88.70-P-9020CW
2	Unclip electrical connector for 360° camera on left outside mirror (B84/7x1) or electrical connector for 360° camera on right outside mirror (B84/8x1) from upper paneling (1) and disconnect	MODEL 204.9 with CODE 501 (360 degree camera) MODEL 207 as of model year 2014 with CODE 501 (360 degree camera) MODEL 212 as of model year 2014 with CODE 501 (360 degree camera) MODEL 218 as of model year 2015 with CODE 501 (360 degree camera)
3	Lift catch hook (arrow) and remove upper paneling (1) upward in direction of arrow
4	Remove screws/bolts (3)
5	Unlock catch hook (arrow B)
6	Unlock catch hook (arrow C) and retaining bracket (arrow D) and remove lower paneling (2) downward in direction of arrow
7	Remove 360° camera on left outside mirror (B84/7) or 360° camera on right outside mirror (B84/8) from bottom paneling (2)	MODEL 204.9 with CODE 501 (360 degree camera) MODEL 207 as of 6/1/13 as of model year 2014 with CODE 501 (360 degree camera) MODEL 212 as of model year 2014 with CODE 501 (360 degree camera) MODEL 218 as of model year 2015 with CODE 501 (360 degree camera) When replacing bottom paneling (2).
7			AR54.30-P-3002ECM
8	Remove left outside mirror ambient lamp (M21/1e1) or right outside mirror ambient lamp (M21/2e1) from bottom paneling (2)	When replacing bottom paneling (2).
9	Install in the reverse order
10	Calibrate 360° camera on left outside mirror (B84/7) or 360° camera on right outside mirror (B84/8) using Star Diagnosis	MODEL 204.9 with CODE 501 (360 degree camera) MODEL 207 as of 6/1/13 with CODE 501 (360 degree camera) MODEL 212 as of model year 2014 with CODE 501 (360 degree camera) MODEL 218 as of model year 2015 with CODE 501 (360 degree camera)
			AD00.00-P-2000-04A
