Remove/install glass adjustment drive - AR88.70-P-9060CW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204, 207, 212, 218
| Remove/install | |||
| 1 | Remove mirror glass | Model 204, 207, 212 | AR88.70-P-9020CW |

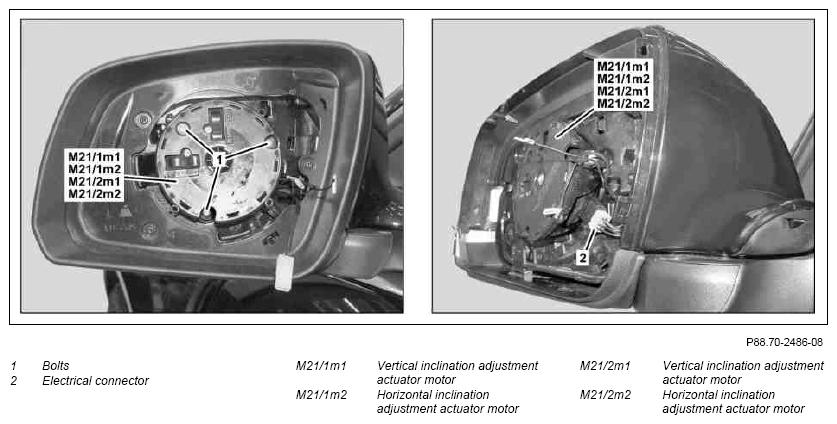

| 2 | Remove bolts (1) | ||
| 3 | Remove vertical inclination adjustment actuator motor (M21/1m1) and horizontal inclination adjustment actuator motor (M21/1m2) or vertical inclination adjustment actuator motor (M21/2m1) and horizontal inclination adjustment actuator motor (M21/2m2) | ||
| 4 | Disconnect electrical connector (2) | ||
| 5 | Install in the reverse order |
