Retrofit spoiler on trunk lid - AZ88.50-P-0005EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0 (except 212.074/077/092) without CODE 772 (AMG styling package - front spoiler, side skirts and rear apron)

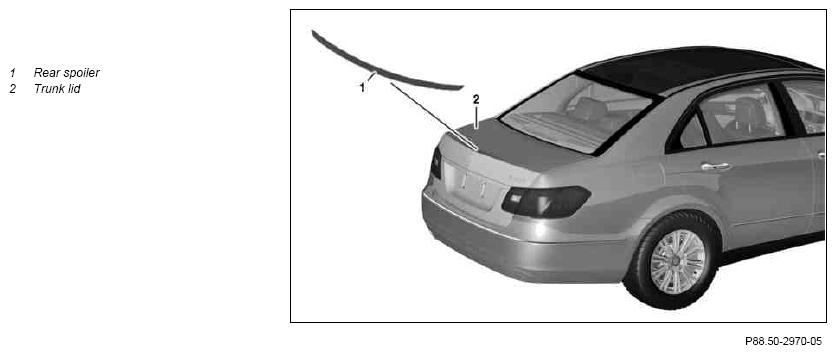

Fig 1: Rear Spoiler And Trunk Lid

Courtesy of MERCEDES-BENZ USA

	Install
	Risk of explosion caused by paint vapors igniting. Risk of poisoning caused by inhaling paint vapors.	No smoking! No open fire! Use respiratory protection, protective clothing, gloves, safety glasses and skin cream. Ensure that the area is well ventilated.	AS98.00-Z-0002-01A
1	Paint rear spoiler (1)		AZ88.50-P-0005-01EW
2	Install rear spoiler (1) on trunk lid (2)		AZ88.50-P-0005-02EW
		When pressing on, ensure that the pressure is applied directly on the adhesive tape. The maximum adhesive force is reached after approx. 72 hours at 20 °C. Avoid any contact with moisture (e.g. rain, fog, carwash) within the first 24 hours. Prevent any mechanical stress. Otherwise adhesion problems can occur. Do not remove protective foil all at once. To increase the processing reliability when installing rear spoiler (1), press finally rear spoiler (1) down on trunk lid (2) using a clean cotton rag, starting at one side.	AZ88.50-P-0005-02EW
		Cleaner	*BR00.45-Z-1025-04A

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71

PARTS ORDERING NOTE

Part no.	Designation	Quantity
KG98	Outer detachable parts	1
