Retrofit roof spoiler - AZ88.30-P-0015EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0 (except 212.074/077/092) without CODE 772 (AMG styling package - front spoiler, side skirts and rear apron)

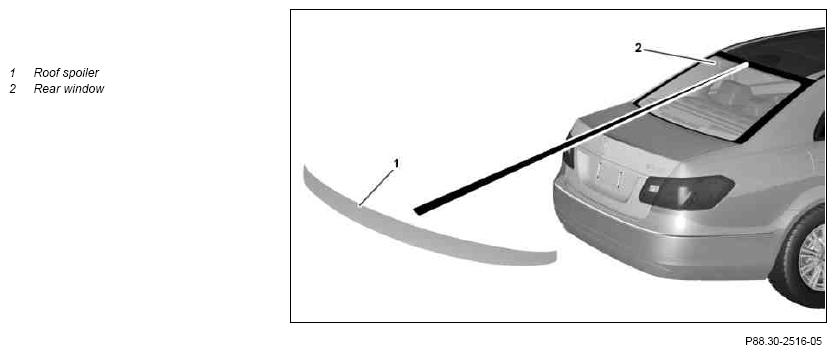

Fig 1: Roof Spoiler And Rear Window

Courtesy of MERCEDES-BENZ USA

	Install
	Risk of explosion caused by paint vapors igniting. Risk of poisoning caused by inhaling paint vapors.	No smoking! No open fire! Use respiratory protection, protective clothing, gloves, safety glasses and protective skin cream. Ensure that the area is well ventilated.	AS98.00-Z-0002-01A
1	Paint roof spoiler (1)		AZ88.30-P-0015-01EW
2	Install roof spoiler (1) on rear window (2)		AZ88.30-P-0015-02EW
		When pressing on, ensure that the pressure is applied directly on the adhesive tape. The maximum adhesive strength is only reached after approx. 72 h at 20 °C. Avoid any contact with moisture (e.g. rain, fog, carwash) within the first 24 hours. Prevent any mechanical stress. Otherwise adhesion problems can occur. Do not remove protective foil all at once. To increase processing reliability when installing roof spoiler (1), conclude by pressing roof spoiler (1) down rear window (2) using a clean cotton rag, starting at one side.	AZ88.30-P-0015-02EW
		Cleaner	*BR00.45-Z-1025-04A
		Primer/3M ™ adhesion promoter 111	*BR00.45-Z-1145-02A
	Update Vehicle Documentation (VeDoc)
3	Attach note "Roof spoiler retrofitted according to AZ88.300015E" field organization texts for design group 88

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71
BR00.45-Z-1145-02A	Primer/3M ™ adhesion promoter 111	A 005 986 02 10

PARTS ORDERING NOTE

Part no.	Designation	Quantity
KG 98	Outer detachtable parts, parts kit	1
