Install roof spoiler on rear window - AZ88.30-P-0015-02EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0 (except 212.074/077/092) without CODE 772 (AMG styling package - front spoiler, side skirts and rear apron)

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71
BR00.45-Z-1145-02A	Primer / 3M (TM) adhesion promoter 111	A 005 986 02 10

Helper required to assemble roof spoiler (1).

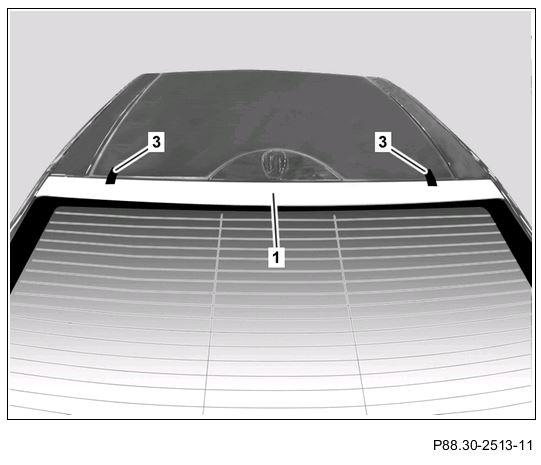

Fig 1: Roof Spoiler And Adhesive Tape

Courtesy of MERCEDES-BENZ USA

Install roof spoiler (1) on rear window, center and mark position with adhesive tape (3).
Ensure that the distance to the outside sides is the same on the left and right.
Cut adhesive tape (3) with knife in gap between roof spoiler (1) and roof.
Carefully separate adhesive tape (3) with knife. Otherwise damage may occur.
Remove roof spoiler (1) and clean rear window in bonding area.
The area on the rear window to be glued must be free of dust and grease. Observe manufacturers instructions.
Apply primer to rear window in bonding area.
Flash off primed surface 10 minutes.

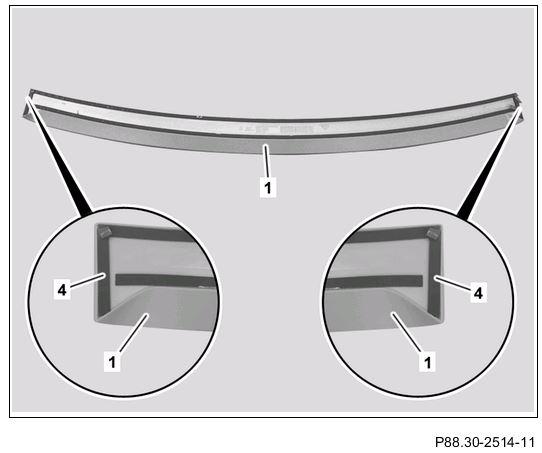

Fig 2: Protective Foils And Roof Spoiler

Courtesy of MERCEDES-BENZ USA

Remove protective foils (4) on side adhesive strips from roof spoiler (1).

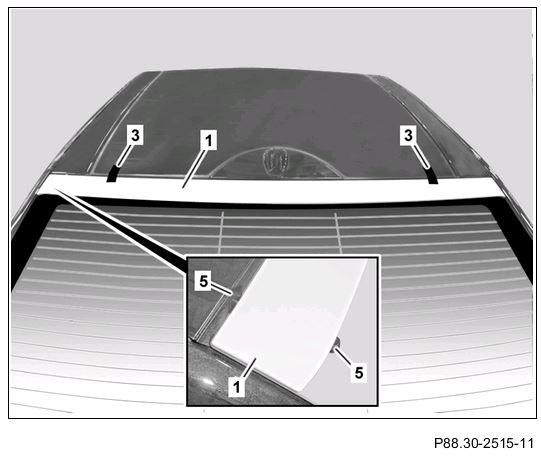

Fig 3: Protective Foils, Roof Spoiler And Adhesive Tape

Courtesy of MERCEDES-BENZ USA

Slightly remove protective foils (5) from adhesive strips on roof spoiler (1) at ends and bend 45° in direction of outer edge.
Fix bent protective foils (5) in place on outside of roof spoiler (1) with adhesive tape (3).
Place roof spoiler (1) on rear window and align to previously attached adhesive tape (3).
Remove protective foil (5) in increments of 15 to 20 cm starting at one side and firmly press on roof spoiler (1).
When pressing on, ensure that the pressure is applied directly on the adhesive tape. The maximum adhesive force is reached after approx. 72 hours at 20°C. Avoid any contact with moisture (e.g. rain, fog, carwash) within the first 24 hours. Prevent any mechanical stress. Otherwise adhesion problems can occur.

Do not remove protective foil (5) all at once. To increase process reliability when installing roof spoiler (1), conclude by pressing roof spoiler (1) down rear window using a clean cotton rag, starting at one side.
Remove adhesive tapes (3).
