Retrofit roof spoiler - AZ88.30-P-0015ES

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.2 (except 212.274/277) up to 4/13/13 up to model year 2014 without CODE 772 (AMG styling package - front spoiler, side skirts and rear apron) without CODE 950 (AMG sport package)

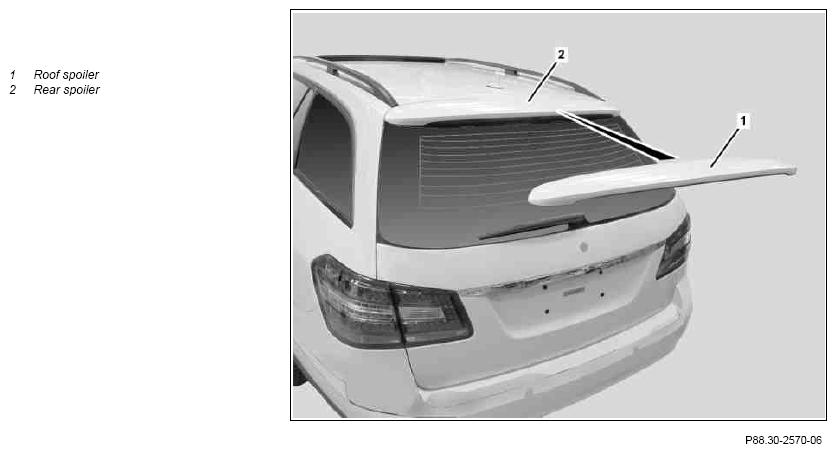

Fig 1: Roof And Rear Spoiler

Courtesy of MERCEDES-BENZ USA

	Install
	Risk of explosion caused by paint vapors igniting. Risk of poisoning caused by inhaling paint vapors.	No smoking! No open fire! Use respiratory protection, protective clothing, gloves, safety glasses and skin cream. Ensure that the area is well ventilated.	AS98.00-Z-0002-01A
1	Paint roof spoiler (1)		AZ88.30-P-0015-01ES
2	Clean bonding surface on standard rear spoiler (2)	Cleaner	*BR00.45-Z-1025-04A
3	Install roof spoiler (1) on standard rear spoiler (2)		AZ88.30-P-0015-02ES
3	Install roof spoiler (1) on standard rear spoiler (2)	When pressing on, the pressure must be applied directly on the adhesive tapes. Otherwise adhesion problems can occur. The maximum adhesive force is reached after approx. 72 hours at 20 °C. Avoid any contact with moisture (e.g. rain, fog, carwash) within the first 24 hours. Prevent any mechanical stress. Do not remove protective foil all at once. To increase processing reliability when installing roof spoiler (1), conclude by pressing roof spoiler (1) down on standard rear spoiler (2) using a clean cotton rag, starting at one side.	AZ88.30-P-0015-02ES

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71

PARTS ORDERING NOTE

Part no.	Designation	Quantity
KG98	Outer detachable parts	1
