Retrofit rear diffuser - AZ88.30-P-0020EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0 (except 212.077) up to 4/13/13, 212.2 (except 212.277) up to 4/13/13 up to model year 2014 without CODE 550 (Trailer coupling) without CODE 772 (AMG styling package - front spoiler, side skirts and rear apron) without CODE 950 (AMG sport package)

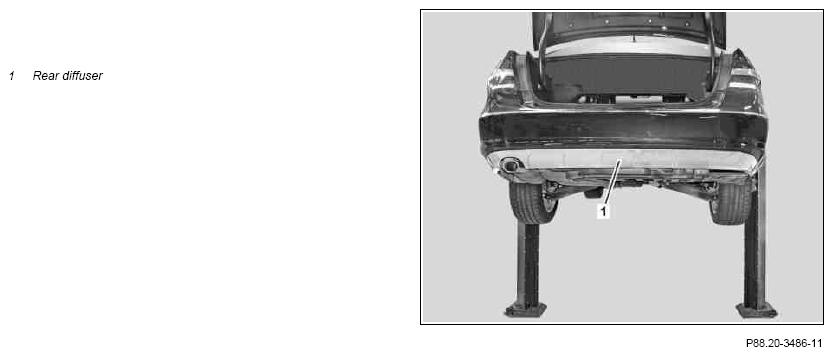

Shown on model 212.0
| Install | |||
| Risk of explosion caused by paint vapors igniting. Risk of poisoning caused by inhaling paint vapors. | No smoking! No open fire! Use respiratory protection, protective clothing, gloves, safety glasses and skin cream. Ensure that the area is well ventilated. | AS98.00-Z-0002-01A | |
| 1 | Paint rear diffuser (1) | AZ88.30-P-0020-01EW | |
| 2 | Install rear diffuser (1) on bumper | AZ88.30-P-0020-02EW |
PARTS ORDERING NOTE
| Part no. | Designation | Quantity |
|---|---|---|
| KG98 | Rear diffuser | 1 |
