Retrofit rear diffuser on bumper - AZ88.30-P-0020-02EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0 /2 (except 212.077 /277) except CODE (550) Trailer hitch except CODE (772) AMG styling package - front spoiler, side skirts and rear apron except CODE (950) AMG sport package

The following steps are shown on model 212.0

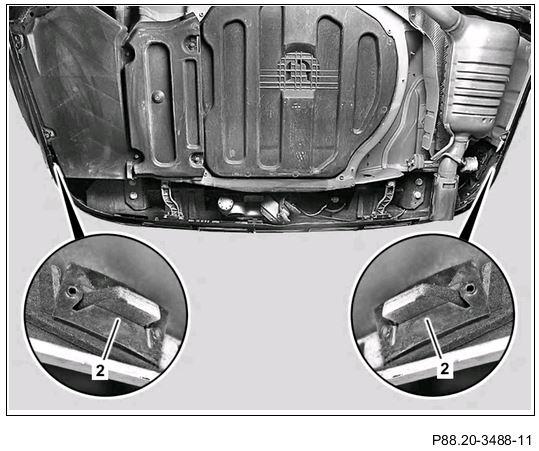

Fig 1: Retaining Clamps

Courtesy of MERCEDES-BENZ USA

Removing

Remove retaining clamps (2) from bumper cover.

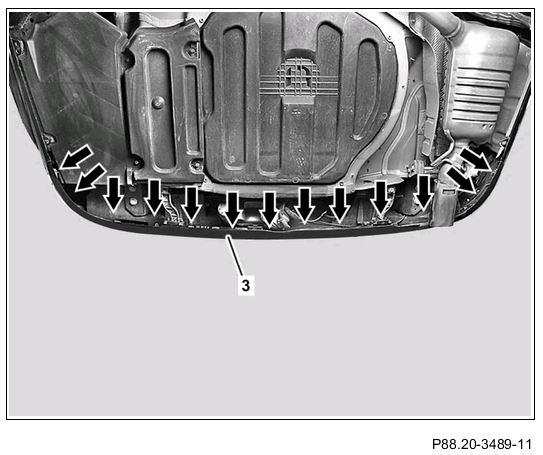

Fig 2: Bumper Cover

Courtesy of MERCEDES-BENZ USA

Unclip catch tabs (arrows) from bumper cover (3).
Remove bumper cover (3)

Install

Install in the reverse order.
Replace bumper cover (3) with rear diffuser.
