Remove/install keyless-Go antenna - AR82.62-P-8000CY
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.9, 212.1/2 with CODE 889 (Keyless Go)
Rear door
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Remove door lining on left or right rear door | Remove/install rear door lining | AR72.12-P-1010CW |

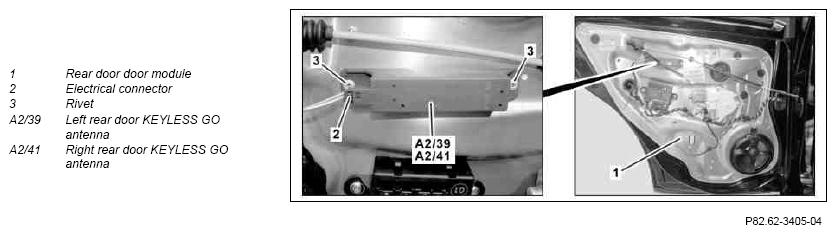

| 2 | Remove rear door module (1) at left and right rear door | Only on vehicles with speaker in rear door. | |
| Remove/install rear door module MODEL 204.9, 212.1/2 with CODE 889 (Keyless Go) MODEL 212.0 with CODE 889 (Keyless Go) without CODE Z04 (Light armoring) |
AR72.12-P-0103CW | ||
| 3 | Disconnect electrical connector (2) from left rear door KEYLESS-GO antenna (A2/39) or right rear door KEYLESS-GO antenna (A2/41) | ||
| 4 | Drill out rivets (3) at left rear door KEYLESS-GO antenna (A2/39) or right rear door KEYLESS-GO antenna (A2/41) | Blind/self-piercing riveting. Rechargeable screwdriver, rechargeable drill. |
|
| 5 | Remove left rear door KEYLESS-GO antenna (A2/39) or right rear door KEYLESS-GO antenna (A2/41) from rear door module (1) | ||
| 6 | Completely remove rest of rivet and chips from left or right rear door | ||
| 7 | Install in the reverse order |
