Remove/install Keyless-Go antenna - AR82.62-P-8000EWA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0/1 with CODE (889) Keyless-Go in trunk
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||

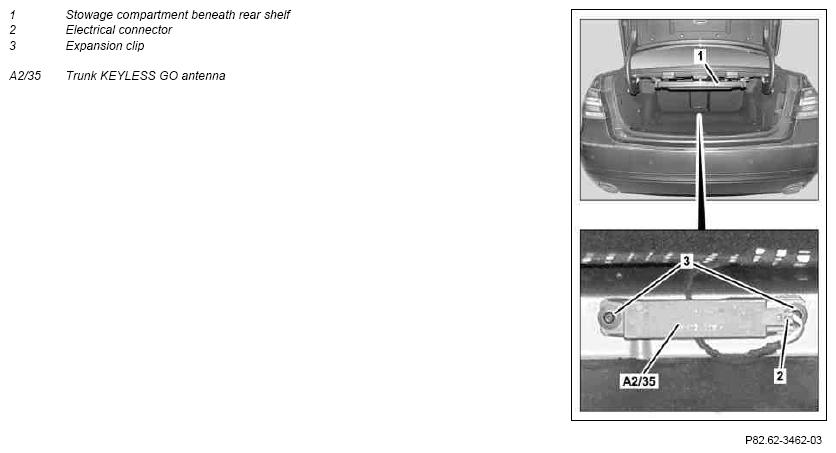

| 1 | Remove stowage compartment beneath rear shelf (1) | AR68.50-P-2000-01EW | |
| 2 | Remove front trunk floor paneling | AR68.30-P-4600EW | |
| 3 | Disconnect electrical connector (2) | ||
| 4 | Remove expansion clips (3) | ||
| 5 | Remove trunk Keyless-Go antenna (A2/35) | ||
| 6 | Install in the reverse order |
