Remove/install Keyless-Go antenna - AR82.62-P-8000EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0/1/2 with CODE (889) Keyless-Go interior center console

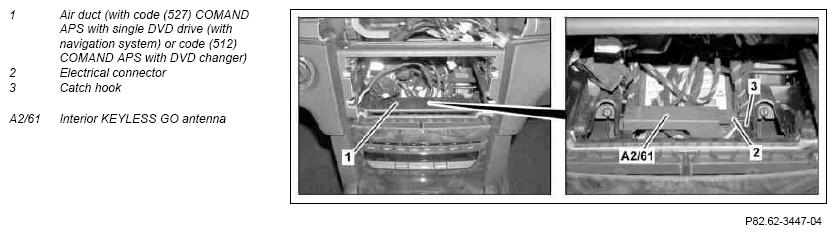

Fig 1: Keyless Go Antenna Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from EIS [EZS] control unit	KEYLESS-GO start/stop button only on vehicles with code (889) Keyless-Go.
2	Remove radio or radio with Auto-Pilot-System or COMAND controller unit		AR82.60-P-7502EW
3	Remove air duct (1) of COMAND additional fan	On vehicles with code (527) COMAND APS with single DVD drive (with navigation) or with code (512) COMAND APS including DVD changer
4	Disconnect electrical connector (2)
5	Release catch hooks (3) and remove interior Keyless-Go antenna (A2/61)
6	Install in the reverse order
