Remove/install Digital Audio Broadcasting control unit (DAB) - AR82.60-P-2001EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0/1 with CODE 537 (Digital radio (DAB))
MODEL 218 up to model year 2015 with CODE 537 (Digital radio (DAB))
Shown on MODEL 212.0 except CODE 489 (AIRmatic) and except CODE 488 (Steel/air suspension)
Vehicles with CODE 488 (Steel/air suspension) or CODE 489 (AIRMATIC)
Vehicles with CODE 409 (Left/right front multicontour seats) or CODE 432 (Left and right dynamic multicontour seat)
| Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Connect diagnostic system and perform initial startup of Digital Audio Broadcasting control unit (N87/3) | When replacing the Digital Audio Broadcasting control unit (N87/3). | |
| AD00.00-P-2000-04A | |||
| 2.1 | Switch off ignition and remove transmitter key from electronic ignition lock control unit | MODEL 212.0/1 with CODE 537 (Digital radio (DAB)) without CODE 889 (KEYLESS-GO) MODEL 218 up to model year 2015 with CODE 537 (Digital radio (DAB)) without CODE 889 (KEYLESS-GO) |
|
| 2.2 | Switch off ignition and remove KEYLESS-GO start/stop button from electronic ignition lock control unit | MODEL 212.0/1 with CODE 537 (Digital radio (DAB)) with CODE 889 (KEYLESS-GO) MODEL 218 up to model year 2015 with CODE 537 (Digital radio (DAB)) with CODE 889 (KEYLESS-GO) |
|
| 3.1 | Remove cover (1) from left trunk lining (2) | MODEL 212.0/1 with CODE 537 (Digital radio (DAB)) without CODE 488 (Steel/air suspension) without CODE 489 (AIRMATIC) |
|
| 3.2 | Remove left trunk lining (2). | MODEL 212.0/1 with CODE 488 (Steel/air suspension) with CODE 537 (Digital radio (DAB)) MODEL 212.0/1 with CODE 489 (AIRMATIC) with CODE 537 (Digital radio (DAB)) MODEL 218.3 up to model year 2015 with CODE 537 (Digital radio (DAB)) |
|
| MODEL 212.0/1 with CODE 488 (Steel/air suspension) with CODE 537 (Digital radio (DAB)) MODEL 212.0/1 with CODE 489 (AIRMATIC) with CODE 537 (Digital radio (DAB)) |
AR68.30-P-4600EW | ||
| MODEL 218.3 up to model year 2015 with CODE 537 (Digital radio (DAB)) |
AR68.30-P-4600EL | ||
| 3.3 | Remove luggage compartment trim on left | MODEL 218.9 up to model year 2015 with CODE 537 (Digital radio (DAB)) |
|
| AR68.30-P-1180ELX | |||
| 4 | Unscrew nuts (12) and place vacuum unit (13) to one side with lines connected | MODEL 212.0/1 with CODE 409 (Left/right front multicontour seat) with CODE 537 (Digital radio (DAB)) MODEL 212.0/1 with CODE 432 (Left and right dynamic multicontour seat) with CODE 537 (Digital radio (DAB)) MODEL 218 up to model year 2015 with CODE 409 (Left/right front multicontour seat) with CODE 537 (Digital radio (DAB)) MODEL 218 up to model year 2015 with CODE 432 (Left and right dynamic multicontour seat) with CODE 537 (Digital radio (DAB)) |
|

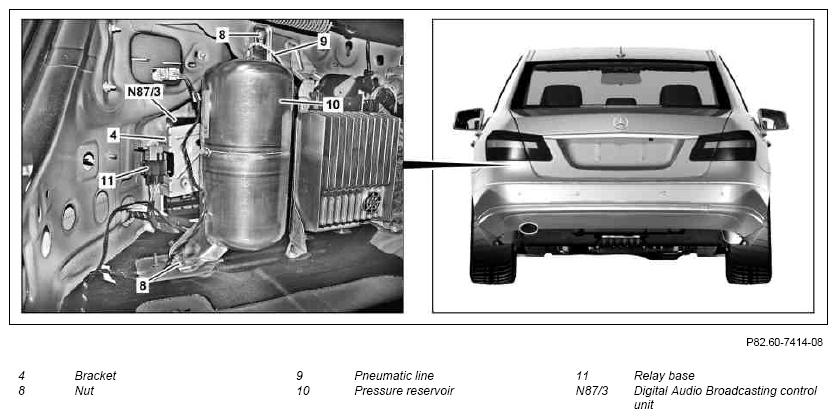

| 5 | Unscrew nuts (8) | MODEL 212.0/1 with CODE 488 (Steel/air suspension) with CODE 537 (Digital radio (DAB)) MODEL 212.0/1 with CODE 489 (AIRMATIC) with CODE 537 (Digital radio (DAB)) MODEL 218 up to model year 2015 with CODE 488 (Steel/air suspension) with CODE 537 (Digital radio (DAB)) MODEL 218 up to model year 2015 with CODE 489 (AIRMATIC) with CODE 537 (Digital radio (DAB)) |
|
| *BA32.22-P-1006-03E | |||
| 6 | Place pressure reservoir (10) to one side with pneumatic line (9) connected | MODEL 212.0/1 with CODE 488 (Steel/air suspension) with CODE 537 (Digital radio (DAB)) MODEL 212.0/1 with CODE 489 (AIRMATIC) with CODE 537 (Digital radio (DAB)) MODEL 218 up to model year 2015 with CODE 488 (Steel/air suspension) with CODE 537 (Digital radio (DAB)) MODEL 218 up to model year 2015 with CODE 489 (AIRMATIC) with CODE 537 (Digital radio (DAB)) |
|
| 7 | Remove relay socket (11) from bracket (4) and place to one side with electrical lines connected | MODEL 212.0/1 with CODE 488 (Steel/air suspension) with CODE 537 (Digital radio (DAB)) MODEL 212.0/1 with CODE 489 (AIRMATIC) with CODE 537 (Digital radio (DAB)) MODEL 218 up to model year 2015 with CODE 488 (Steel/air suspension) with CODE 537 (Digital radio (DAB)) MODEL 218 up to model year 2015 with CODE 489 (AIRMATIC) with CODE 537 (Digital radio (DAB)) |
|
| 8 | Unscrew nuts (3) | ||
| 9 | Remove bracket (4) with Digital Audio Broadcasting control unit (N873) and place to one side with electrical lines connected | ||
| 10 | Disconnect electrical connector (5) | ||
| 11 | Disconnect electrical connection with optical fiber (6) | ||
| 12 | Cover up connector of electrical connection with optical fiber (6) and equipment connection on Digital Audio Broadcasting control unit (N87/3) | ||
| 13 | Remove bracket (4) with Digital Audio Broadcasting control unit (N87/3) | ||
| 14 | Unscrew nuts (7) and remove Digital Audio Broadcasting control unit (N87/3) from bracket (4) | When replacing the Digital Audio Broadcasting control unit (N87/3). | |
| 15 | Install in the reverse order |
AIR SUSPENSION
| Number | Designation | MODEL 212 | MODEL 218 | |
|---|---|---|---|---|
| BA32.22-P-1006-03E | Nut, pressure reservoir to longitudinal member | Nm | 6 | 6 |
