Remove/install DVD player - AR82.60-P-7505EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 with CODE (864) Rear entertainment system except CODE (224) Rear individual seat design
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Buffer basic data of rear entertainment system in STAR DIAGNOSIS | When replacing the DVD player (A40/4). |
|
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| 2 | Remove rear seat cushion | AR91.12-P-1020CW | |
| 3 | Remove non-woven cloth from beneath the rear seat cushion | ||
| 4 | Remove bolts (5) | ||

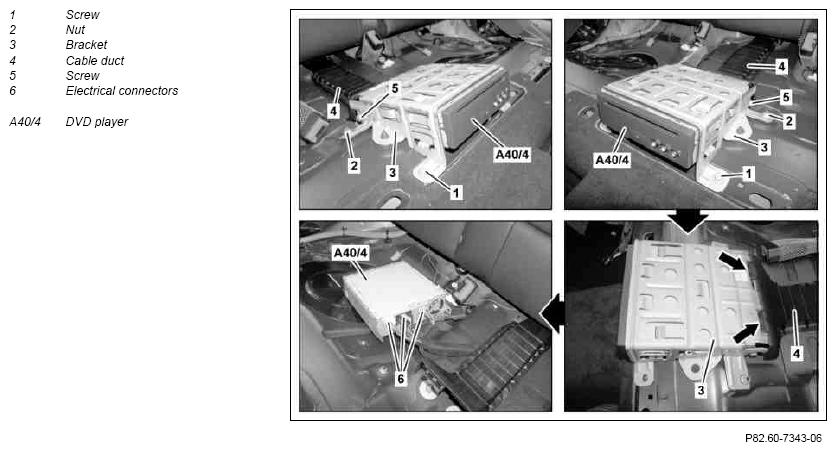

| 5 | Remove screws/bolts (1) and loosen nuts (2) | ||
| 6 | Unhook bracket (3) with DVD player (A40/4) from cable duct (4) (arrow) and put to one side | ||
| 7 | Slide down bracket (3) from DVD player (A40/4) towards the rear and remove | ||
| 8 | Detach electrical connectors (6) from DVD player (A40/4) and remove DVD player (A40/4) | ||
| 9 | Install in the reverse order |
