Remove/install injection valves (ME-SFI) - AR07.03-P-6520EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 272, 273 (except 272.983) in MODEL 212

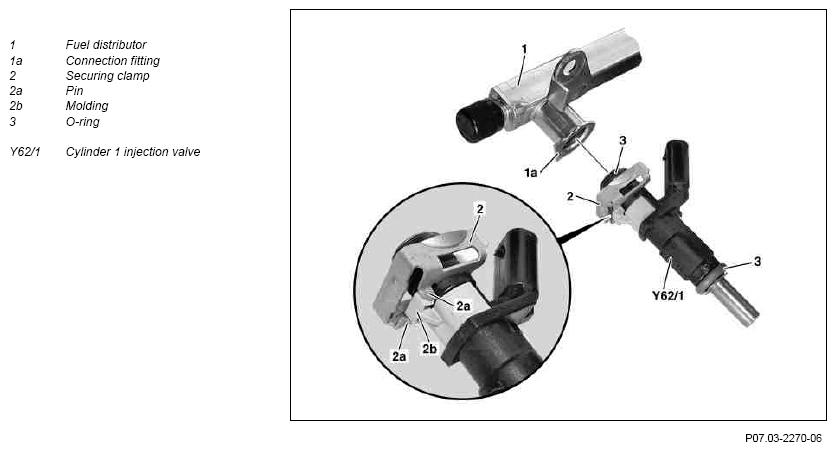

Shown on injection valve for cylinder 1
| Removing | |||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| 1 | Switch off ignition | ||
| 2 | Remove air filter housing | AR09.10-P-1150EWS | |
| 3 | Remove fuel distributor (1) | AR07.03-P-1451EW | |
| 4 | Pry out securing clamps (2) of injection valves (Y62/1 up to Y62/6 or Y62/8) | ||
| 5 | Pull injection valves (Y62/1 to Y62/6 or Y62/8) out of fuel distributor (1) | ||
| Install | |||
| 6 | Replace O-rings (3) | ||
| 7 | Slide securing clamps (2) onto injection valves (Y62/1 to Y62/6 or Y62/8) | ||
| 8 | Apply lubricating paste to O-rings (3) | Lubricant paste | *BR00.45-Z-1002-06A |
| 9 | Slide injection valves (Y62/1 to Y62/6 or Y62/8) into fuel distributor (1) in the correct position | The safety clips (2) must latch in audibly. |
|
| 10 | Install in the reverse order | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 11 | Carry out an engine test run and check fuel system for leaks |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1002-06A | Lubricating paste, rubber parts 2.5 kg, DB supply specification 6867.00 | A 000 989 01 60 |
