Remove/install fuel distributor with injection valves (ME-SFI) - AR07.03-P-1451CMG
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 156 in MODEL 204, 212
| Remove/install | |||
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel and risk of injury to eyes and skin caused by contact with fuel | No fire, sparks, open flames or smoking. Pour fuels only into suitable and appropriately marked containers. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| 1 | Remove air filter housing | AR09.10-P-1150CMG | |
| 2 | Unscrew cap (9) from service valve | ||
| 3 | Reduce fuel pressure with pressure hose via the service valve | AR07.03-P-1460-01TMG | |

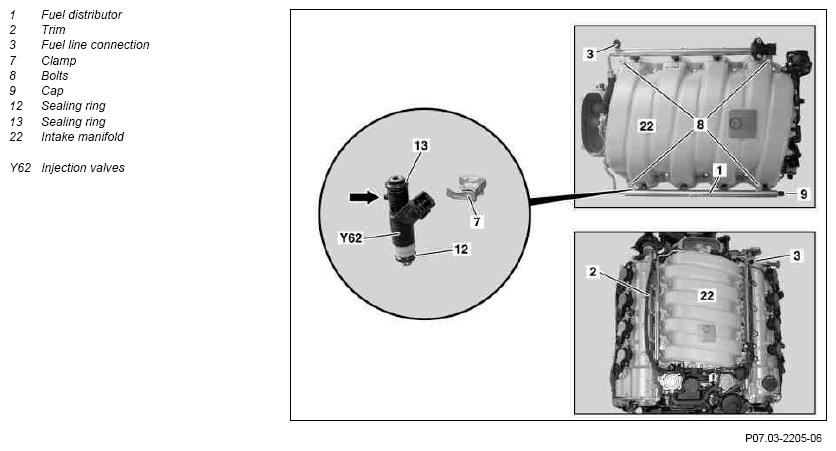

| Figure | |||
| 4 | Detach fuel line from fuel distributor (1) | Collect fuel in a suitable container. | |
| *BA07.03-P-1001-01C | |||
| 5 | Disconnect electrical connectors at injection valves (Y62) | ||
| 6 | Detach electrical connectors on fuel distributor (1) | ||
| 7 | Remove bolts (8) on fuel distributor (1) | *BA07.03-P-1002-01C | |
| 8 | Lift fuel distributor (1) and injection valves (Y62) from intake manifold (22) | ||
| Lubricant paste | *BR00.45-Z-1002-06A | ||
| Checking | |||
| 9 | Check injection valves (Y62) with STAR DIAGNOSIS | If necessary: ↓ | |
| Replace injection valves (Y62). | AR07.03-P-6520CMG | ||
| 10 | Install in the reverse order | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 11 | Carry out engine test run and check fuel system for leaks |
INJECTORS, INJECTION VALVES, LINES
| Number | Designation | ENGINE 156 | |
|---|---|---|---|
| BA07.03-P-1001-01C | Union nut, fuel line to fuel distributor | Nm | 20 |
| BA07.03-P-1002-01C | Bolt, fuel distributor to resonance intake manifold | Nm | 9 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1002-06A | Lubricating paste, rubber parts 2.5 kg, DB supply specification 6867.00 | A 000 989 01 60 |
