Reduce fuel pressure through service valve - AR07.03-P-1460-01TMG
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 156
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel and risk of injury to eyes and skin caused by contact with fuel | No fire, sparks, open flames or smoking. Only pour fuels into suitable and appropriately marked containers. Wear protective clothing when handling fuel. | AS47.00-Z-0001-01A |

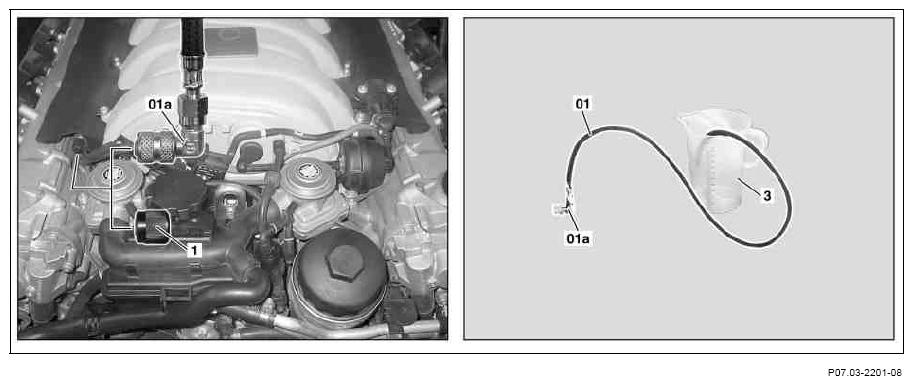

- Unscrew protective cap (1) on fuel distributor service valve.
- Insert end of
pressure hose (01) into a suitable container.
- Screw union nut from angled piece (01a) onto service valve.
At this point, the service valve is opened and the fuel pressure in the fuel distributor is reduced.
- Unscrew the union nut of the angled piece (01a) from the service valve.
- Screw protective cap (1) onto service valve for fuel distributor.
