Remove/install exhaust gas temperature probe - AR07.04-P-0071SXI

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 642 in MODEL 204, 207, 212, 218

ENGINES 642.8 in MODEL 221

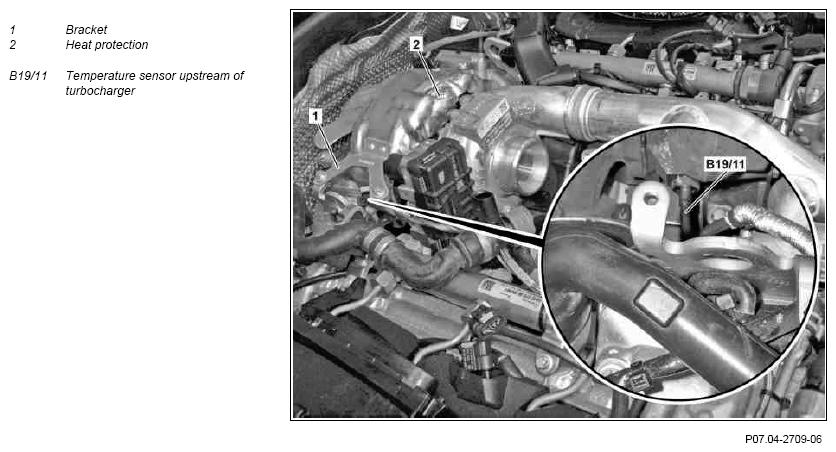

Shown on engine 642.8

Fig 1: Exhaust Gas Temperature Probe Remove/Install Components - Shown On Engine 642.8

Courtesy of MERCEDES-BENZ USA

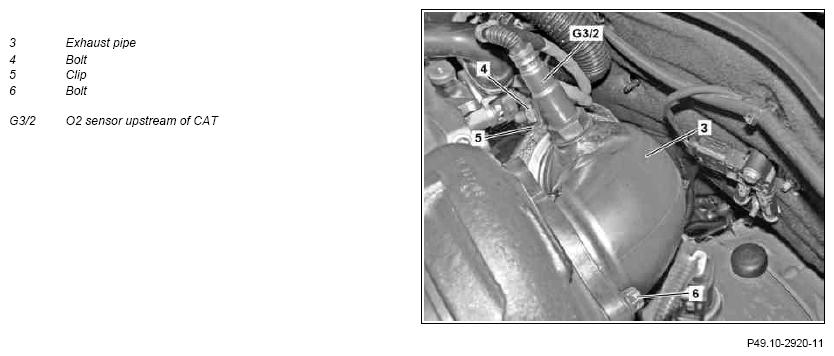

Shown: engine 642.8 with code (U42) BlueTEC (SCR) diesel exhaust treatment in model 221 with 4MATIC

Fig 2: Exhaust Gas Temperature Probe Remove/Install Components - Shown On Engine 642.8 With Code

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury to skin and eyes caused by handling hot or glowing objects.	Wear safety gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
1	Remove engine trim panel	Ensure correct seating of the engine cover. Model 204, 207, 212, 218
		Model 221	AR01.10-P-2405SXI
2	Remove bracket (1)
3	Remove heat protection (2)
4.1	Remove exhaust pipe (3)	Model 221 with code (U42) BlueTEC (SCR) diesel exhaust treatment Remove bolt (4) on clamp (5). Remove top bolts (6) but only loosen bottom bolt (6) as the flange is slotted. Close off openings of the turbocharger and the CAT For vehicles with 4 MATIC lay exhaust pipe with the attached O2 sensor upstream of CAT (G3/2) outside the working area. Replace seal and all screws/bolts (4, 6).
			*BA09.40-P-1012-01K
			Fig 3
4.2	Remove catalytic converter	Model 204 (as of model year 2009)	AR49.10-P-5500CW
		Model 204 (up to model year 2009)	AR49.10-P-5500CO
		Model 207, 212, 218 Close off openings of the turbocharger and the diesel particulate filter.	AR49.10-P-5500OGE
		Set of protective covers	Fig 3
5	Disconnect electrical connector on temperature sensor upstream of exhaust gas turbocharger (B19/11)
6	Remove temperature sensor upstream of turbocharger (B19/11)	Align the temperature sensor upstream of turbocharger (B19/11) through turning in such a way that the distances to the heat shield (2) and to charge air manifold are adequate and even otherwise damage will occur to the electrical feed line. Coat thread with heat-resistant lubricant.
			*BA14.20-P-1005-01G
		Set of engine mount wrenches	Fig 4
		Paste, hot lubrication 1 kg, DB supply specification 6879.20	*BR00.45-Z-1005-06A
7	Connect Star Diagnosis, read out fault memory and erase if necessary		AD00.00-P-2000-04A
	Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
8	Carry out an engine test run and test exhaust system for leaks

TURBOCHARGER

Number	Designation		ENGINE 642
BA09.40-P-1012-01K	Exhaust line to turbocharger	Nm	20

EXHAUST GAS RECIRCULATION

Number	Designation		Engine 642.82/83/85/86/87/886/9
BA14.20-P-1005-01G	Temperature sensor for exhaust gas temperature measurement	Nm	45

Fig 3: Identifying Set Of Protective Covers (001 589 01 91 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Set Of Engine Bearing Wrenches (001 589 01 16 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1005-06A	Paste, hot lubrication 1 kg, DB supply specification 6879.20	A 000 989 76 51
