Removing and installing tailgate hinge assembly - AR72.20-P-2560ES

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.2

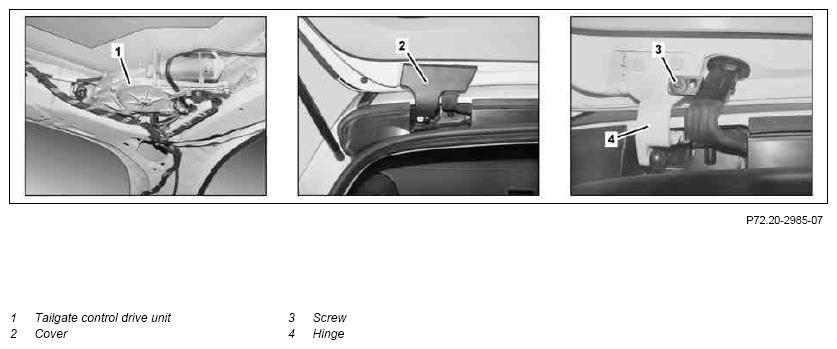

Fig 1: Tailgate Hinge Assembly Remove/Install Components (1 Of 2)
G09977417Courtesy of MERCEDES-BENZ USA

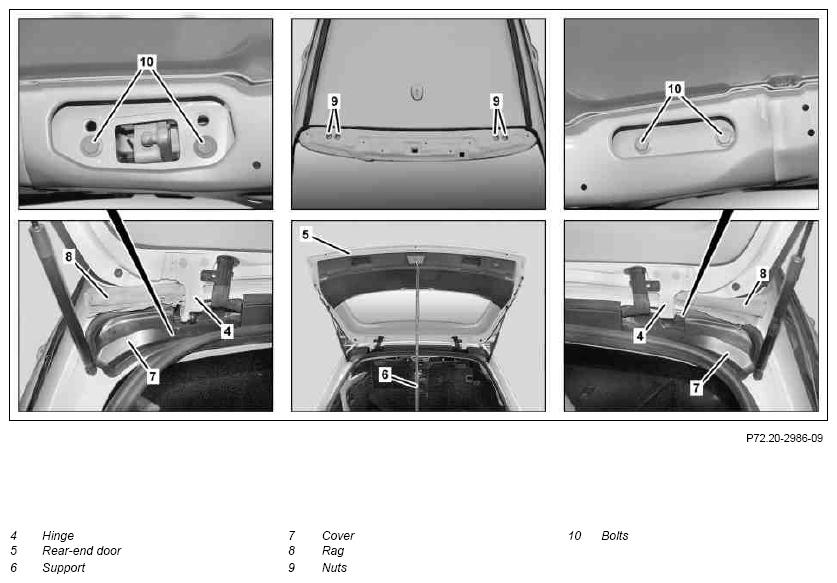

Fig 2: Tailgate Hinge Assembly Remove/Install Components (2 Of 2)
G09977418DANGERIMPORTANTREMOVINGSPECIAL TOOLNOTESINSTALLINGTORQUE SPECIFICATIONIMPORTANTSPECIAL TOOLREFER TO SELF-DIAGNOSTIC SYSTEMSIMPORTANTCourtesy of MERCEDES-BENZ USA
DANGER Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. No parts of the body or limbs should be within the operating area when the components are moving. AS00.00-Z-0011-01A
IMPORTANT Notes on sensor system for trunk lid opening/closing   AH80.61-P-0001-01A
REMOVING Remove
1 Remove rear spoiler
2 Remove headliner
3 Remove tailgate control drive unit
4 Remove left and right cover (2) from left and right hinge (4)
5 Unscrew left and right bolt (3) from left and right hinge (4)
6 Unclip cover (7)
7 Lay rag (8) below rear-end door (5) to protect against paint damage as shown
8 Secure rear-end door (5) with support (6) SPECIAL TOOL Support Fig 3
9 Mark installation position of left and right hinge (4) on roof frame and rear-end door (5)
10 Remove covers above nuts (9)
11 Unscrew nuts (9) from rear-end door (5) NOTES Remove hinges (4) only separately when rear-end door (5) and support (6) are installed. If both hinges (4) are to be removed, the second hinge (4) should only be removed after installing the first hinge (4).
Otherwise the rear-end door (5) can be damaged and the adjustment of the rear-end door (5) can be changed.
12 Unscrew bolts (10) from roof frame and remove hinge (4)
INSTALLING Install
13 Align hinge (4) at installation marking on roof frame and tighten bolts (10) TORQUE SPECIFICATION Screw/bolt, rear-end door hinge to body *BA72.20-P-1002-02L
14 Screw nuts (9) to rear-end door (5) finger-tight IMPORTANT It should be possible to move the rear-end door (5). Tighten nuts (9) after adjusting rear-end door (5).
Install covers above nuts (9) after adjusting rear-end door (5).
15 Take off support (6) SPECIAL TOOL Support Fig 3
16 Adjust liftgate (5) Adjust rear-end door AR72.20-P-3510ES
17 Clip in cover (7)
18 Screw left and right bolt (3) into left and right hinge (4)
19 Install left and right cover (2) on left and right hinge (4)
20 Install tailgate control drive unit
21 Synchronize tailgate control drive unit
REFER TO SELF-DIAGNOSTIC SYSTEMS Connect STAR DIAGNOSIS and read out fault memory   AD00.00-P-2000-04A
    IMPORTANT The system must be resynchronized if the position of the rear-end door (5) changes.
22 Install headliner
23 Install rear spoiler
REAR-END DOOR

Number Designation MODEL 212.2
BA72.20-P-1002-02L Screw/bolt, rear-end door hinge to body Nm 40
Fig 3: Identifying Support Tool (170 589 04 63 00)
G09977419Courtesy of MERCEDES-BENZ USA
