Remove/install sealing for crank window on front door - AR72.10-P-1905CY
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166 except CODE (Z04) Light armoring except CODE (Z05)
MODEL 204.9
MODEL 212 except CODE (Z04) Light armoring
Illustrated on model 204
| Removing | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Completely open crank window (3) | ||
| 2 | Remove outer sealing strip (2) | ||
| 3 | Remove outside mirror | Model 166.8 | |
| Model 166.0 | AR88.70-P-9000GZ | ||
| Model 212 | AR88.70-P-9000CW | ||
| 4 | Remove clip (4) | Model 204 | |
| 5 | Carefully pry out trim strip (1a) on window guide seal (1) | Model 166.8 | |

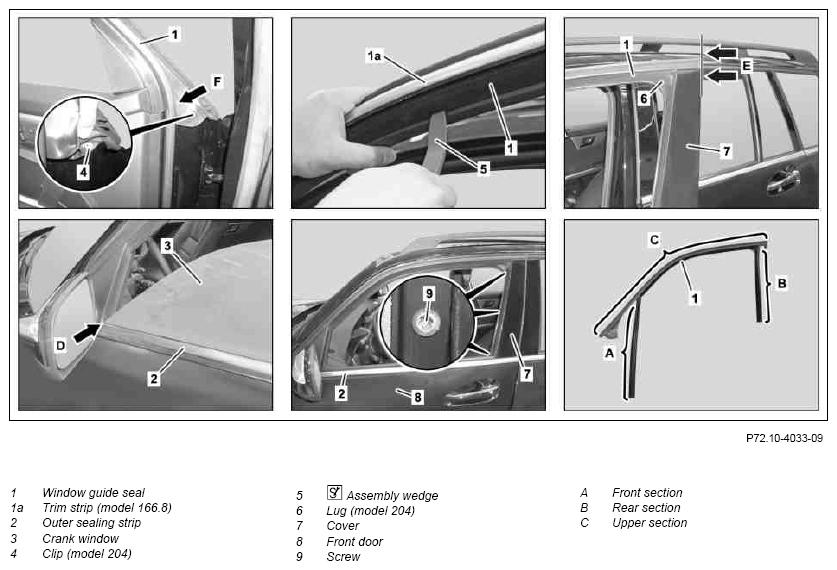

| Figure | |||
| 6 | Pull section (B) of window guide seal (1) out of window frame in area of cover (7) until bolts (9) are accessible | ||
| 7 | Remove bolts (9) and take off cover (7) upward from window frame | ||
| 8 | Lift window guide seal (1) out of groove in window frame in the flocked upper section (C) with assembly wedge (5) as shown | Figure | |
| 9 | Lift upper section (C) on window guide seal (1) out of window frame with assembly wedge (5) | ||
| Figure | |||
| 10 | Pull front section (A) of window guide seal (1) upward out of front door (8) and remove window guide seal (1) | ||
| Install | |||
| 11 | Move crank window (3) up to position shown (arrow D) | ||
| 12 | Apply coat of soap solution to front section (A) located below beltline after installation | ||
| 13 | Slide front section (A) along front edge of crank window (3) downward | ||
| 14 | Loosely position upper section (C) on window frame | ||
| 15 | Apply coat of soap solution to front section (B) located below beltline after installation | ||
| 16 | Position window guide seal (1) in rear upper corner of window frame | ||
| 17 | Apply antifriction agent to rear of cover (7) and slide cover (7) onto window frame from top | Antifriction agent | *BR00.45-Z-1010-06A |
| 18 | Tighten bolts (9) | ||
| 19 | Slide rear section (B) along rear edge of crank window (3) downward | ||
| 20 | Insert remaining rear section (B) into cover with aid of lubricant (7) | ||
| Antifriction agent | *BR00.45-Z-1010-06A | ||
| 21 | Apply lubricant in upper section (C), align window guide seal (1) and clip upper section (C) to window frame starting on inside | ||
| Antifriction agent | *BR00.45-Z-1010-06A | ||
| 22 | Insert remaining front section (A) into window frame with aid of lubricant | Antifriction agent | *BR00.45-Z-1010-06A |
| 23 | Check whether window guide seal (1) is seated correctly in window frame, if applicable, correct with assembly wedge (5) | Figure | |
| 24 | Position window guide seal (1) below door frame seal (arrow F) | ||
| 25 | Insert trim strip (1a) into window guide rail (1) | Model 166.8 | |
| 26 | Install new clip (4) on window guide seal (1) | Model 204 | |
| 27 | Install outside mirror | Model 166.8 | |
| Model 166.0 | AR88.70-P-9000GZ | ||
| Model 212 | AR88.70-P-9000CW | ||
| 28 | Install outer sealing strip (2) | ||
| 29 | Completely close crank window (3); ensure that crank window (3) runs correctly into window guides of window guide seal (1) |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1010-06A | Lubricant, rubber assembly 1 l | A 000 989 03 67 |
