Remove/install complete outside mirror - AR88.70-P-9000CW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204, 207, 212, 216, 221

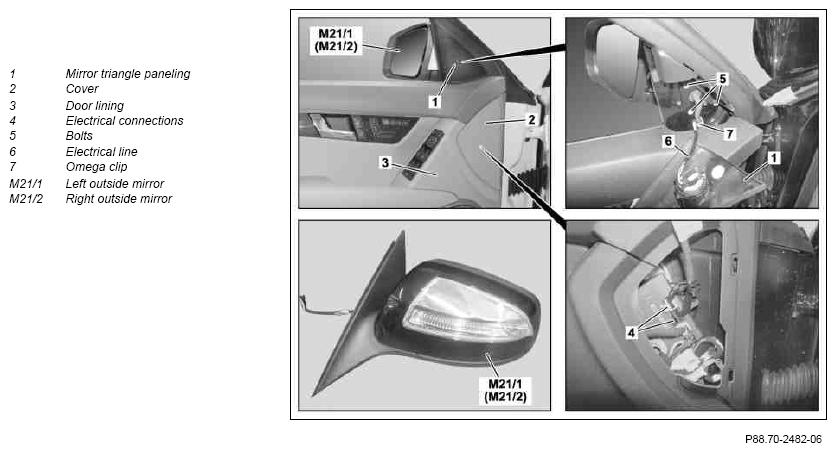

Shown on model 204 up to model year 2011

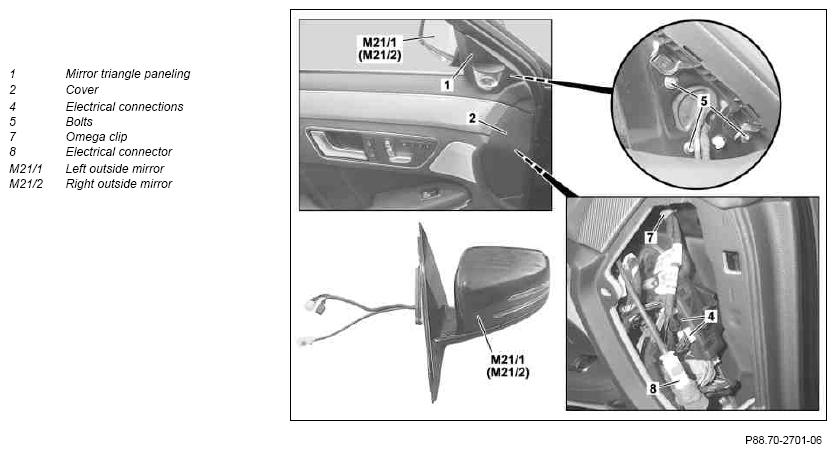

Shown on model 212 as of model year 2014
| Remove/install | |||
| 1 | Unclip left and right mirror triangle paneling (1) and allow electrical line (6) to hang down | Figure | |
| 2 | Remove rear soundproofing from cover on mirror triangle (1) | MODEL 204, 216, 221 | |
| 3 | Unclip window frame paneling in area of threaded connection on left outside mirror (M21/1) or right outside mirror (M21/2) | MODEL 204.9 | |
| 4 | Unclip cover (2) from door lining (3) and remove | Figure | |
| 5 | Disconnect electrical connectors (4) | ||
| 6 | Disconnect electrical connector (8) | MODEL 212 with CODE 501 (360 degree camera) |
|
| 7 | Remove omega clip (7) | MODEL 204, 212 | |
| 8 | Protection door lining (3) in area of bolts (5) against damage with adhesive tape | MODEL 207 | |
| 9 | Remove bolts (5) and remove left outside mirror (M21/1) or right outside mirror (M21/2) | ||
| 10 | Install in the reverse order | ||
| 11 | Calibrate 360° camera for left outside mirror (B84/7) or 360° camera for right outside mirror (B84/8) using Star Diagnosis | MODEL 212 with CODE 501 (360 degree camera) |
|
| AD00.00-P-2000-04A |
