Remove/install rear door lock - AR72.12-P-2510CW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204.0/2/9

MODEL 212.0 except CODE (Z04) Light armoring

MODEL 212.2

Shown without code (889) Keyless Go

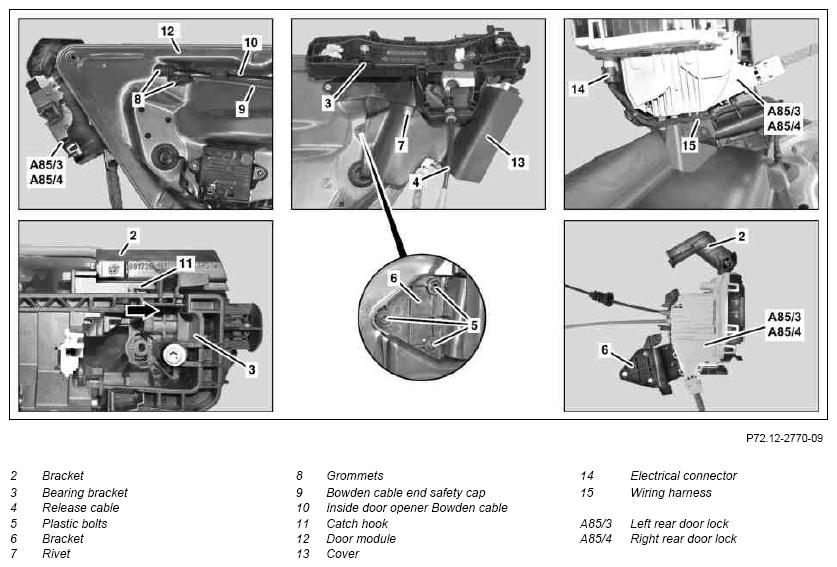

Fig 1: Rear Door Lock Remove/Install Components - Shown Without Code 889

Courtesy of MERCEDES-BENZ USA

	Removing
1	Remove door module (12) from rear door		AR72.12-P-0103CW
2	Unclip bearing bracket (3) from bracket (2)
3	Unhook release cable (4) from bearing bracket (3).
4	Disconnect electrical connector	Vehicles with Keyless-Go code 889:
5	Drill out rivet (7).	Rechargeable drill/screwdriver
6	Turn cover (13) until plastic bolts (5) are accessible.
7	Knock plastic bolts (5) out of bracket (6) with suitable punch in direction of inside of door module.	Support door module (12), otherwise it can bend.
8	Press left rear door lock (A85/3) or right rear door lock (A85/4) off of door module (12) in area of bracket (6)	Assembly wedge	Figure
9	Remove electrical wiring harness (15) from left rear door lock (A85/3) or right rear door lock (A85/4)
10	Disconnect electrical connector (14)
11	Unhook grommets (8) from door module (12)	Carefully unhook grommets (8), otherwise grommets (8) can tear.
12	Remove left rear door lock (A85/3) or right rear door lock (A85/4) from door module (12), guide Bowden cable end safety cap (9) and inside door opener Bowden cable (10) through openings in door module (12)
	Install
13	Position left rear door lock (A85/3) or right rear door lock (A85/4) on door module (12), guide Bowden cable end safety cap (9) and inside door opener Bowden cable (10) through openings in door module (12) and clip bracket (6) into door module (12) with left rear door lock (A85/3) or right rear door lock (A85/4)
14	Install electric wiring harness (15) on left rear door lock (A85/3) or right rear door lock (A85/4) and connect electrical connector (14)
15	Press plastic bolts (5) into bracket (6) with suitable punch in direction of left rear door lock (A85/3) or right rear door lock (A85/4)	Support door module (12), otherwise it can bend.
16	Install grommets (8) in door module (12) with aid of lubricant.	Carefully install grommets (8), otherwise grommets (8) can tear.
16		Antifriction agent	*BR00.45-Z-1010-06A
17	Position cover (13) and insert new rivet (7)	Hand riveter
18	Connect electrical connector	Vehicles with Keyless-Go code 889:
19	Hook release cable (4) into bearing bracket (3).
20	Install bearing bracket (3) on left rear door lock (A85/3) or right rear door lock (A85/4)	The catch hooks (11) must arrest completely.
21	Install door module (12) in rear door		AR72.12-P-0103CW

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1010-06A	Lubricant, rubber assembly 1 l	A 000 989 03 67
