Remove/install front door lock - AR72.10-P-4011CW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204

MODEL 212 except CODE (Z04) Light armoring

Shown without code (889) Keyless Go

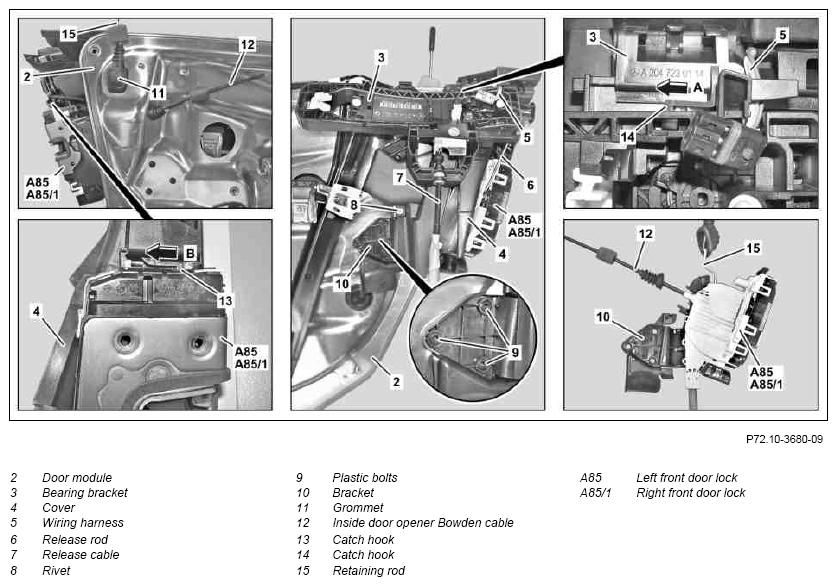

Fig 1: Front Door Lock Remove/Install Components - Shown Without Code 889

Courtesy of MERCEDES-BENZ USA

	Removing
1	Remove door module (2)		AR72.10-P-0900CW
2	Unclip bearing bracket (3) in direction of arrow (arrow A) from cover (4)
3	Unhook release rod (6) from left front door lock (A85) or right front door lock (A85/1)
4	Unhook release cable (7) from bearing bracket (3).
5	Remove electric wiring harness (5) from bearing bracket (3).	With code (889) Keyless Go, it is necessary to remove an additional electrical wiring harness from the bearing bracket (3).
6	Unclip cover (4) from left front door lock (A85) or right front door lock (A85/1) in direction of arrow (arrow B)
7	Drill out rivet (8).	Rechargeable drill/screwdriver
8	Remove electrical wiring harness (5) from left front door lock (A85) or right front door lock (A85/1)	With code (889) Keyless Go, an additional electrical wiring harness must be removed from the left front door lock (A85) or right front door lock (A85/1).
9	Knock plastic bolts (9) out of bracket (10) with punch in direction of inside of door module.	Support door module (2), otherwise it can bend.
10	Press left front door lock (A85) or right front door lock (A85/1) off of door module (2) in area of bracket (10) with assembly wedge		Figure
11	Unhook grommet (11) and grommet on inside door opener Bowden cable (12) from door module (2).
12	Remove left front door lock (A85) or right front door lock (A85/1) from door module (2). Guide inside door opener Bowden cable (12) and locking bar (15) through openings in door module (2).
	Install
13	Position left front door lock (A85) or right front door lock (A85/1) on door module (2), guide inside door opener Bowden cable (12) and locking bar (15) through door module opening (2) and clip bracket (10) into door module (2) with left front door lock (A85) or right front door lock (A85/1)	Support door module (2), otherwise it can bend.
14	Press plastic bolts (9) into bracket (10) in direction of left front door lock (A85) or right front door lock (A85/1) with suitable punch	Support door module (2), otherwise it can bend.
15	Install grommet (11) and grommet on inside door opener Bowden cable (12) in door module (2) with aid of lubricant.	Antifriction agent	*BR00.45-Z-1010-06A
16	Install electrical wiring harness (5) on left front door lock (A85) or right front door lock (A85/1)	With code (889) Keyless Go, an additional electrical wiring harness must be installed on the left front door lock (A85) or right front door lock (A85/1).
17	Insert new rivet (8).	Hand riveting tool
18	Clip cover (4) into left front door lock (A85) or right front door lock (A85/1)	The catch hooks (13) must arrest completely.
19	Remove electric wiring harness (5) from bearing bracket (3).	With code (889) Keyless Go it is necessary to install an additional electric wiring harness on the bearing bracket (3)..
20	Hook release cable (7) into bearing bracket (3).
21	Hook release rod (6) into left front door lock (A85) or right front door lock (A85/1) and clip bearing bracket (3) into cover (4)	The catch hooks (14) must arrest completely.
22	Install door module (2)		AR72.10-P-0900CW

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1010-06A	Lubricant, rubber assembly 1 l	A 000 989 03 67
