Test compression pressure - AR01.00-P-1200SXI

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 642 in MODEL 204, 207, 212, 218, 221

MODIFICATION NOTES

16.7.14

Special tool 611 589 01 63 00 replaced in 642 589 02 63 00.

Operation step 5

Shown on model 221

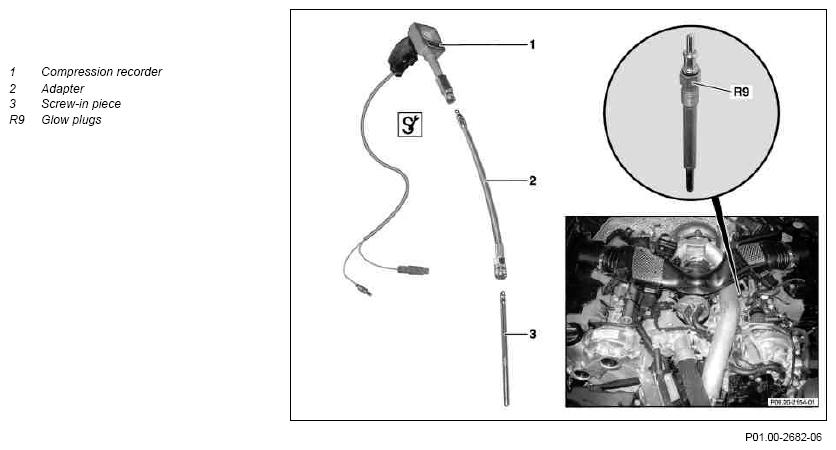

Fig 1: Testing Compression Pressure

Courtesy of MERCEDES-BENZ USA

	Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
	Risk of injury . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Remove/install
1	Bring engine up to operating temperature (approx. 80°C)	Check compression pressure when engine at operating temperature.
2	Switch off ignition
3	Remove glow plugs (R9)	MODEL 204, 207, 212, 218	AR15.20-P-4111CO
3	Remove glow plugs (R9)	MODEL 221	AR15.20-P-4111SXI
4	Crank engine with starter	MODEL 204, 207	AR01.10-P-0110CW
4	Crank engine with starter	MODEL 212, 218, 221 Do not turn engine over the transmitter key in electronic ignition lock control unit. Crank engine several times to eliminate combustion residues in the cylinder.	AR01.10-P-0110SX
5	Screw screw-in piece (3) into the glow plug hole of the cylinder to be checked.	According to variants, use screw-in piece M8 (3) or screw-in piece M10 (3).
		Screw-in fitting	Fig 5
		Screw-in fitting	Figure
6	Connect compression recorder (1) to screw-in piece (3)	Connect compression recorder (1) with flexible adapter (2) to the screw-in pieceM8 (3) or screw-in piece (3) M10.
		Intermediate piece	Figure
		Compression tester	Figure
	Check
7	Check compression pressure	Do not turn engine over the transmitter key in electronic ignition lock control unit. To check compression pressure, the engine must be turned over using the starter for at least eight revolutions: ↓ Crank engine with starter.
		MODEL 204, 207	AR01.10-P-0110CW
		MODEL 212, 218, 221	AR01.10-P-0110SX
8	Compare pressure readings obtained with test values	Installation tolerance or new value of compression pressure	*BE01.00-P-1001-01A
		Compression pressure, permissible difference between the cylinders If pressure measured is less than minimum compression pressure or if permissible difference between individual cylinders is exceeded: ↓ Check cylinder leakage.	*BE01.00-P-1003-01A
			AR01.00-P-1300SXI
9	Install in the reverse order
