Replace bottom radial shaft sealing ring on control head - AR46.20-P-0003Q

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 164, 251

MODEL 203, 209 without CODE 213 (Speed-sensitive power steering)

MODEL 204.0 (except 204.08), 204.2 (except 204.28), 204.3 without CODE 211 (Direct-Steer system)

MODEL 207 (except 207.388) without CODE 211 (Direct-Steer system)

MODEL 212 (except 212.08) without CODE 211 (Direct-Steer system)

MODEL 215, 220

Illustrated on model 209

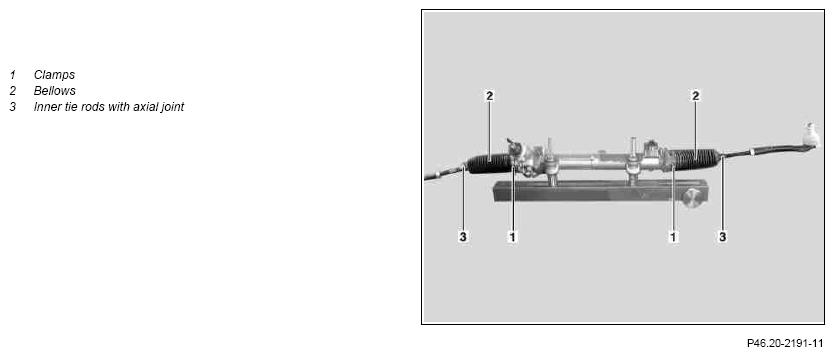

Fig 1: Bottom Radial Shaft Sealing Ring On Control Head Remove/Install Components - Illustrated On Model 209 (1 Of 7)
G09976666Courtesy of MERCEDES-BENZ USA

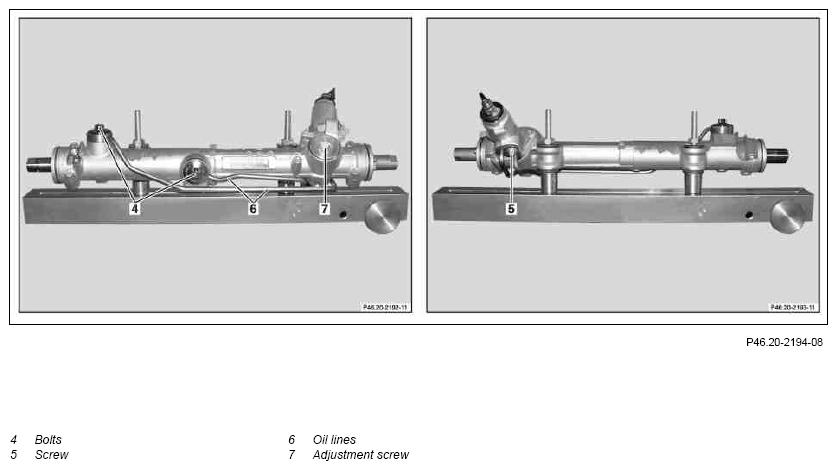

Fig 2: Bottom Radial Shaft Sealing Ring On Control Head Remove/Install Components - Illustrated On Model 209 (2 Of 7)
G09976667Courtesy of MERCEDES-BENZ USA

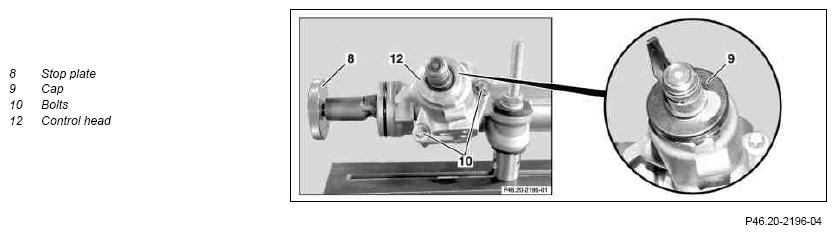

Fig 3: Bottom Radial Shaft Sealing Ring On Control Head Remove/Install Components - Illustrated On Model 209 (3 Of 7)
G09976668Courtesy of MERCEDES-BENZ USA

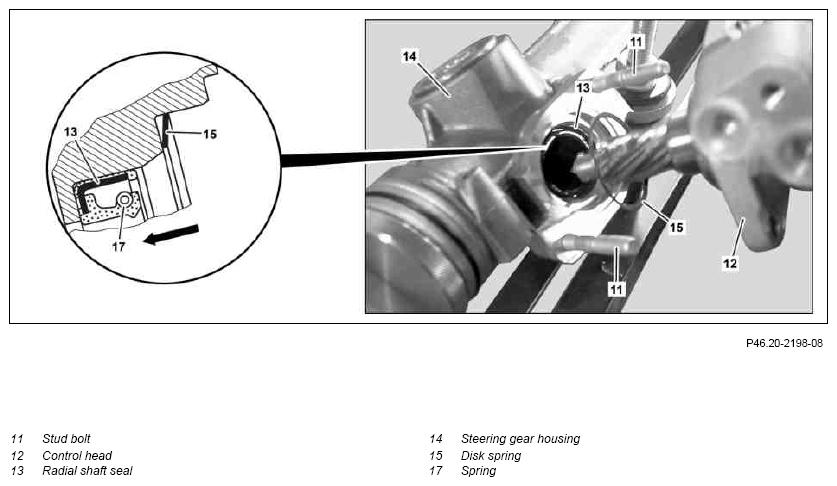

Fig 4: Bottom Radial Shaft Sealing Ring On Control Head Remove/Install Components - Illustrated On Model 209 (4 Of 7)
G09976669Courtesy of MERCEDES-BENZ USA

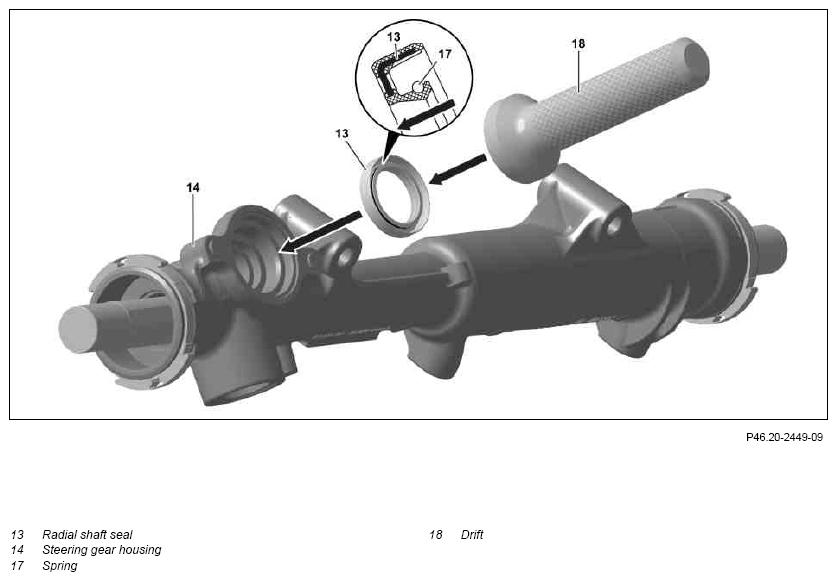

Fig 5: Bottom Radial Shaft Sealing Ring On Control Head Remove/Install Components - Illustrated On Model 209 (5 Of 7)
G09976670Courtesy of MERCEDES-BENZ USA

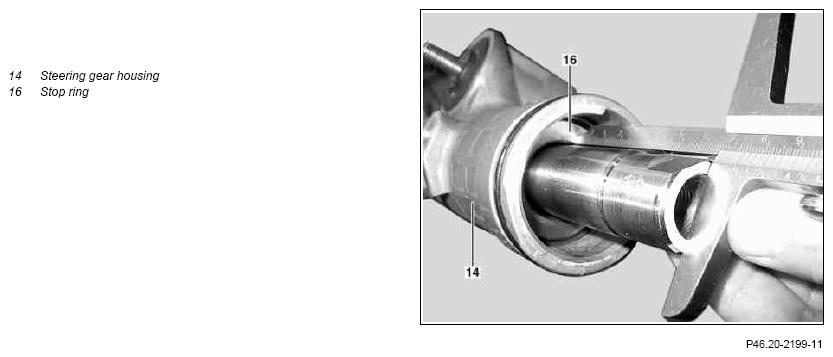

Fig 6: Bottom Radial Shaft Sealing Ring On Control Head Remove/Install Components - Illustrated On Model 209 (6 Of 7)
G09976671Courtesy of MERCEDES-BENZ USA

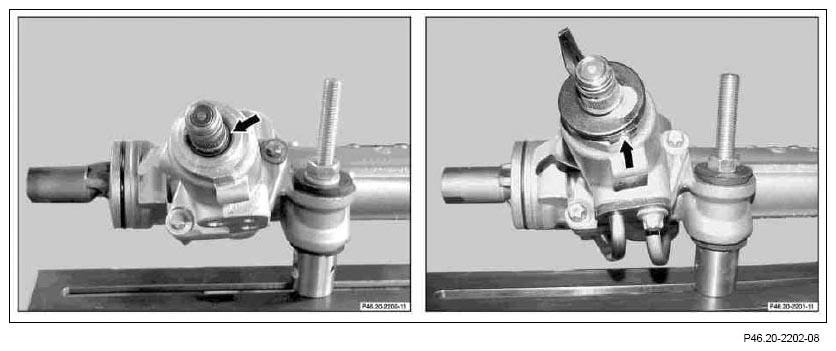

Fig 7: Bottom Radial Shaft Sealing Ring On Control Head Remove/Install Components - Illustrated On Model 209 (7 Of 7)
G07067412DANGERDANGERREMOVINGINSTALLINGIMPORTANTIMPORTANTSPECIAL TOOLINSTALLATION IMPORTANTNOTESIMPORTANTTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONSPECIAL TOOLSPECIAL TOOLDISASSEMBLINGIMPORTANTIMPORTANTNOTESIMPORTANTIMPORTANTSPECIAL TOOLIMPORTANTSPECIAL TOOLIMPORTANTNOTESNOTESIMPORTANTNOTESSPECIAL TOOLSPECIAL TOOLASSEMBLINGIMPORTANTNOTESNOTESSPECIAL TOOLSPECIAL TOOLIMPORTANTIMPORTANTNOTESNOTESNOTESIMPORTANTSPECIAL TOOLNOTESIMPORTANTSPECIAL TOOLIMPORTANTTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONIMPORTANTIMPORTANTIMPORTANTNOTESTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONNOTESTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONIMPORTANTIMPORTANTCourtesy of MERCEDES-BENZ USA
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of accident from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
REMOVINGINSTALLING Remove/install
1 Remove rack-and-pinion steering MODEL 164 AR46.20-P-0600GZ
MODEL 203 (except
203.081/084/087/092/281/284/287/292) without CODE 213 (Speed-sensitive power steering)
MODEL 209
without CODE 213 (Speed-sensitive power steering)		 AR46.20-P-0600P
MODEL 203.081/084/087/092/281/284/287/292 without CODE 213 (Speed-sensitive power steering) AR46.20-P-0600PW
MODEL 204.0 (except 204.08), 204.2 (except 204.28), 204.3 without CODE 211 (Direct-Steer system) AR46.20-P-0600CW
MODEL 212 (except 212.08) without CODE 211 (Direct-Steer system) AR46.20-P-0600EW
MODEL 215.373/374/375/376/378/379, 220.025/026/028/063/065/067/070/073/074/075/125/126/128/163/165/167/170/173/174/175/178/875/878 AR46.20-P-0600I
MODEL 220.08/18 AR46.20-P-0600IW
MODEL 220.176/179 AR46.20-P-0600M
MODEL 251 AR46.20-P-0600RT
2 Mount rack-and-pinion steering into steering gear housing mounting device IMPORTANT Before starting repair, remove loose dirt from steering gear without using cleaning agent! Ensure that the workplace is scrupulously clean when carrying out the work described below and while performing repairs!
IMPORTANT Only the specified tools may be used!
SPECIAL TOOL Steering gear housing support Fig 13
3 Remove clamps (1) of both bellows (2) INSTALLATION IMPORTANT Replace clamps (1).
4 Push outer clamps together and slide bellows (2) towards the tie rod end
5 Detach inner tie rods with axial joint (3) NOTES Do not use force (hammer blows, excessive leverage).
Otherwise the inner tie rod with axial joint (3) will be damaged.
IMPORTANT Secure toothed rack to prevent it from twisting, counterhold with open end wrench.
TORQUE SPECIFICATION
MODEL 164		 *BA46.40-P-1003-01K
TORQUE SPECIFICATION
MODEL 203, 209
without CODE 213 (Speed-sensitive power steering)
MODEL 215, 220		 *BA46.40-P-1003-01E
TORQUE SPECIFICATION
MODEL 204.0 (except 204.08), 204.2 (except 204.28), 204.3
without CODE 211 (Direct-Steer system)
MODEL 207 (except 207.388)
without CODE 211 (Direct-Steer system)
MODEL 212 (except 212.08)
without CODE 211 (Direct-Steer system)		 *BA46.40-P-1003-01N
TORQUE SPECIFICATION
MODEL 251		 *BA46.40-P-1003-01L
SPECIAL TOOL Open end wrench Fig 9
SPECIAL TOOL Torque wrench Fig 14
DISASSEMBLING Disassemble
6 Remove screws/bolts (4)
7 Remove bolt (5)
8 Detach oil lines (6)
9 Remove adjusting screw (7) IMPORTANT Mark the position before unscrewing the adjusting screw (7).
10 Take out push spring IMPORTANT The thrust piece can remain in the steer jacket (14).
11 Mount stop plates (8) at left and right to the rack-and-pinion
12 Remove cap (9)
13 Remove screws/bolts (10)
14 Turn in studs (11) NOTES The studs (11) must be screwed in for the control head (12) to be removed.
The radial shaft sealing ring (13) and tooth flanks will otherwise be damaged.
IMPORTANT The stud (11) can be shop-made (M8 X50 mm).
15.1 Rotate input shaft clockwise Left hand drive vehicle steering
IMPORTANT Turn clockwise until the stop plate (8) abuts the steer jacket (14).
SPECIAL TOOL Socket wrench Fig 10
15.2 Rotate input shaft anti-clockwise Right hand drive vehicle steering
IMPORTANT Turn counterclockwise until the stop plate (8) abuts the steer jacket (14).
SPECIAL TOOL Socket wrench Fig 10
16 Continue pressing with light pressure against the stop IMPORTANT Until the control head (12) with input shaft lifts off the steer jacket (14).
17 Remove control head (12) NOTES The control head (12) must be removed with the input shaft.
Damage to the control head (12) must be avoided.
18 Remove spring washer (15)
19 Remove stud (11)
20 Remove oil which has leaked into control head (12) from rack-and-pinion steering. NOTES In order to rule out contamination do not use any cleaning agent, shop towels cleaning cloths.
Dirt on the toothed rack can impair its operation.
IMPORTANT Turn rack-and-pinion steering with opening facing downwards and allow oil to drain out.
21 Remove radial shaft sealing ring (13). NOTES Do not position the puller on the thread and not too far inward.
This will prevent damage to the thread and seat of the O-ring.
SPECIAL TOOL Puller, 28-37 mm dia. Fig 15
SPECIAL TOOL Counter stay Fig 12
ASSEMBLING Assemble
22 Grease outer surface of the radial shaft sealing ring (13) IMPORTANT Apply special grease using fingers. Do not use any other aid.
Renolit JP1619 special grease *BR00.45-Z-1067-06A
23 Drive in radial shaft sealing ring (13) NOTES Make sure that the drift (18) and guide sleeve are seated correctly.
The radial shaft sealing ring (13) will otherwise be damaged.
NOTESAssembly:
Make sure that the installation position and installation direction (arrow) of the radial shaft sealing ring (13) are correct. The spring (17) must be visible.
Otherwise the radial shaft sealing ring (13) will be leaky and the oil will collect in the boots (2) or flow in.
SPECIAL TOOL Drift Fig 11
SPECIAL TOOL Guide sleeve Fig 8
24 Grease inner lip of radial shaft sealing ring (13) IMPORTANT Apply special grease using fingers. Do not use any other aid.
Renolit JP1619 special grease *BR00.45-Z-1067-06A
25 Insert spring washer (15) IMPORTANT Insert spring washer (15) with the curvature towards the steer jacket (14).
26 Turn in studs (11) NOTES The studs (11) must be screwed in for the control head (12) to be installed.
To prevent damage to the radial shaft sealing ring (13) and tooth flanks.
27 Slide in control head (12) as far as possible. NOTES Always fit new O-rings.
to avoid any leakage.
28.1 Rotate input shaft anti-clockwise Left hand drive vehicle steering
NOTES
Turn the input shaft carefully.
The tooth flanks will otherwise be damaged.
IMPORTANT Turn to the left until the bearing of the input shaft is located in the guide in the steer jacket (14).
SPECIAL TOOL Socket wrench Fig 10
28.2 Rotate input shaft clockwise Right hand drive vehicle steering
NOTES
Turn the input shaft carefully.
The tooth flanks will otherwise be damaged.
IMPORTANT Turn to right, until the input shaft bearing is positioned in the guide in the steer jacket (14).
SPECIAL TOOL Socket wrench Fig 10
29 Remove stud (11)
30 Screw in screws (10) IMPORTANT Turn in gradually to avoid any tilting.
TORQUE SPECIFICATION
MODEL 164		 *BA46.20-P-1006-01K
TORQUE SPECIFICATION
MODEL 203, 209
without CODE 213 (Speed-sensitive power steering)		 *BA46.20-P-1008-01F
TORQUE SPECIFICATION Model 215, 220 *BA46.20-P-1012-01E
TORQUE SPECIFICATION
MODEL 204.0 (except 204.08), 204.2 (except 204.28), 204.3
without CODE 211 (Direct-Steer system)
MODEL 207 (except 207.388)
without CODE 211 (Direct-Steer system)
MODEL 212 (except 212.08)
without CODE 211 (Direct-Steer system)		 *BA46.20-P-1005-01N
TORQUE SPECIFICATION
MODEL 251		 *BA46.20-P-1006-01L
31 Move steering rack to center position IMPORTANT Dismantle the stop plate (8) on both sides of the steering rack. Use depth gauge to determine center position. Balance out the gaps from the end of the steering rack to the stop ring (16) in the steer jacket (14) on both sides of the steering rack.
32 Grease gap between input shaft and control head (12) (arrow) IMPORTANT Apply special grease using fingers. Do not use any other aid.
Renolit JP1619 special grease *BR00.45-Z-1067-06A
33 Slide on covering cap (9) IMPORTANT The marking on the cap (9) must match the marking on the control head (12) (arrow).
34 Install oil lines (6) NOTES Always install new seals.
to avoid any leakage.
35 Screw in bolts (5) TORQUE SPECIFICATION
MODEL 164		 *BA46.20-P-1001-01K
TORQUE SPECIFICATION
MODEL 203, 209
without CODE 213 (Speed-sensitive power steering)		 *BA46.20-P-1009-01F
TORQUE SPECIFICATION Model 215, 220 *BA46.20-P-1013-01E
TORQUE SPECIFICATION
MODEL 204.0 (except 204.08), 204.2 (except 204.28), 204.3
without CODE 211 (Direct-Steer system)
MODEL 207 (except 207.388)
without CODE 211 (Direct-Steer system)
MODEL 212 (except 212.08)
without CODE 211 (Direct-Steer system)		 *BA46.20-P-1003-01N
TORQUE SPECIFICATION
MODEL 251		 *BA46.20-P-1002-01L
36 Screw in screws (4) NOTES
Observe tightening torques.
Otherwise the steering housing (14) will be damaged.
TORQUE SPECIFICATION
MODEL 164		 *BA46.20-P-1004-01K
TORQUE SPECIFICATION
MODEL 203, 209
without CODE 213 (Speed-sensitive power steering)		 *BA46.20-P-1010-01F
TORQUE SPECIFICATION Model 215, 220 *BA46.20-P-1014-01E
TORQUE SPECIFICATION
MODEL 204.0 (except 204.08), 204.2 (except 204.28), 204.3
without CODE 211 (Direct-Steer system)
MODEL 207 (except 207.388)
without CODE 211 (Direct-Steer system)
MODEL 212 (except 212.08)
without CODE 211 (Direct-Steer system)		 *BA46.20-P-1007-01N
TORQUE SPECIFICATION
MODEL 251		 *BA46.20-P-1004-01L
37 Insert push spring IMPORTANT On model 203 up to steering gear number 203460110001088##### (LHD standard) 203460250001088##### (RHD standard) replace the thrust piece.
38 Screw in adjusting screw (7)
39 Setting play between thrust element and steering rack MODEL 164, 251 AR46.20-P-0601TX
MODEL 203, 209
without CODE 213 (Speed-sensitive power steering)
MODEL 215, 220		 AR46.20-P-0601P
MODEL 204.0 (except 204.08), 204.2 (except 204.28), 204.3
without CODE 211 (Direct-Steer system)
MODEL 207 (except 207.388)
without CODE 211 (Direct-Steer system)
MODEL 212 (except 212.08)
without CODE 211 (Direct-Steer system)		 AR46.20-P-0601CW
40 Check rack for easy motion by turning manually.
41 Install in the reverse order
42 Check rack-and-pinion steering for proper function. * IMPORTANT Turn steering wheel several times from lock to lock. Check oil level in steering. Check steering leaktightness. Check steering function at slow and fast cornering.
43 Perform wheel alignment check MODEL 164 AR40.20-P-0200GZ
MODEL 203, 209
without CODE 213 (Speed-sensitive power steering)		 AR40.20-P-0200P
MODEL 204.0 (except 204.08), 204.2 (except 204.28), 204.3
without CODE 211 (Direct-Steer system)		 AR40.20-P-0200CW
MODEL 207 (except 207.388)
without CODE 211 (Direct-Steer system)
MODEL 212 (except 212.08)
without CODE 211 (Direct-Steer system)		 AR40.20-P-0200EW
MODEL 215
MODEL 220.0
MODEL 220.1
without CODE 979 (Special protection version)
without CODE Z07 (Top protection)		 AR40.20-P-0200I
MODEL 220.1
with CODE 979 (Special protection version)
with CODE Z07 (Top protection)		 AR40.20-P-0200MB
MODEL 220.8 AR40.20-P-0200MP
MODEL 251 AR40.20-P-0200RT
STEERING GEAR

Number Designation MODEL 164.1/8
BA46.20-P-1001-01K Bolt, retaining plate for oil line to control head Nm 18
STEERING GEAR

Number Designation MODEL 251
BA46.20-P-1002-01L Bolt, retaining plate for oil line to control head Nm 18
STEERING GEAR

Number Designation MODEL 204 except 4MATIC, except 204.9 MODEL 204 with 4MATIC, with MODEL 204.9
BA46.20-P-1003-01N Bolt, clamp plate, high-pressure line/return line to rack-and-pinion steering control head Nm 21 21
STEERING GEAR

Number Designation MODEL 207 except 4MATIC MODEL 212 except 4MATIC
BA46.20-P-1003-01N Bolt, clamp plate, high-pressure line/return line to rack-and-pinion steering control head Nm 21 21
STEERING GEAR

Number Designation MODEL 212 with 4MATIC
BA46.20-P-1003-01N Bolt, clamp plate, high-pressure line/return line to rack-and-pinion steering control head Nm 21
STEERING GEAR

Number Designation MODEL 164.1/8
BA46.20-P-1004-01K Oil line to steer jacket Stage 1 Nm 100
Stage 2, loosen ∠° -17
Stage 3 Nm 90
STEERING GEAR

Number Designation MODEL 251
BA46.20-P-1004-01L Oil line to steer jacket Stage 1 Nm 100
2nd stage loosen ∠° -17
Stage 3 Nm 90
STEERING GEAR

Number Designation MODEL 204 except 4MATIC, except 204.9 MODEL 204 with 4MATIC, with MODEL 204.9
BA46.20-P-1005-01N Control head to steering gear housing Nm 18 18
STEERING GEAR

Number Designation MODEL 207 except 4MATIC MODEL 212 except 4MATIC
BA46.20-P-1005-01N Control head to steering gear housing Nm 18 18
STEERING GEAR

Number Designation MODEL 212 with 4MATIC
BA46.20-P-1005-01N Control head to steering gear housing Nm 18
STEERING GEAR

Number Designation MODEL 164.1/8
BA46.20-P-1006-01K Bolt, control head to steering housing Nm 18
STEERING GEAR

Number Designation MODEL 251
BA46.20-P-1006-01L Bolt, control head to steering housing Nm 18
STEERING GEAR

Number Designation MODEL 204 except 4MATIC, except 204.9 MODEL 204 with 4MATIC, with MODEL 204.9
BA46.20-P-1007-01N Banjo bolt, oil line to steering gear housing Nm 42 42
STEERING GEAR

Number Designation MODEL 207 except 4MATIC MODEL 212 except 4MATIC
BA46.20-P-1007-01N Banjo bolt, oil line to steering gear housing Nm 42 42
STEERING GEAR

Number Designation MODEL 212 with 4MATIC
BA46.20-P-1007-01N Banjo bolt, oil line to steering gear housing Nm 42
STEERING GEAR

Number Designation MODEL 203 MODEL 209
BA46.20-P-1008-01F Control head to steer jacket Nm 18 (±2) 18 (±2)
STEERING GEAR

Number Designation MODEL 203 MODEL 209
BA46.20-P-1009-01F Oil line to control head Nm 18 (±2) 18 (±2)
STEERING GEAR

Number Designation MODEL 203 MODEL 209
BA46.20-P-1010-01F Oil line to steer jacket Stage 1 Nm 100 100
Stage 2, loosen ∠° -20 -20
Stage 3 Nm 90 90
STEERING GEAR

Number Designation MODEL 215 MODEL 220.02/06/07/12/16/17
BA46.20-P-1012-01E Control head to steer jacket Nm 18 (±2) 18 (±2)
STEERING GEAR

Number Designation MODEL 220.083/084/087/183/184/187
BA46.20-P-1012-01E Control head to steer jacket Nm 18 (±2)
STEERING GEAR

Number Designation MODEL 215 MODEL 220.02/06/07/12/16/17
BA46.20-P-1013-01E Oil line to control head Nm 28 (±8) 28 (±8)
STEERING GEAR

Number Designation MODEL 220.083/084/087/183/184/187
BA46.20-P-1013-01E Oil line to control head Nm 28 (±8)
STEERING GEAR

Number Designation MODEL 215 MODEL 220.02/06/07/12/16/17
BA46.20-P-1014-01E Oil line to steer jacket Stage 1 Nm 100 100
Stage 2, loosen ∠° -20 -20
Stage 3 Nm 90 90
STEERING GEAR

Number Designation MODEL 220.083/084/087/183/184/187
BA46.20-P-1014-01E Oil line to steer jacket Stage 1 Nm 100
Stage 2, loosen ∠° -20
Stage 3 Nm 90
TIE ROD

Number Designation MODEL 203 (except 203.081/084/087/092/281/284/287/292) MODEL 203.081/084/087/092/281/284/287/292
BA46.40-P-1003-01E Inner track rod with axial joint to rack-and-pinion joint Nm 110 110
TIE ROD

Number Designation MODEL 209 MODEL 215
BA46.40-P-1003-01E Inner track rod with axial joint to rack-and-pinion joint Nm 110 110
TIE ROD

Number Designation MODEL 220 (except 220.083/084/087/183/184/187) MODEL 220.083/084/087/183/184/187
BA46.40-P-1003-01E Inner track rod with axial joint to rack-and-pinion joint Nm 110 110
TIE ROD

Number Designation MODEL 164.1/8
BA46.40-P-1003-01K Inner track rod with axial joint to rack-and-pinion steering Nm 110
TIE ROD

Number Designation MODEL 251
BA46.40-P-1003-01L Inner tie rod with axial joint to rack Nm 110
TIE ROD

Number Designation MODEL 204 MODEL 207
BA46.40-P-1003-01N Inner tie rod to rack-and-pinion steering Nm 110 110
TIE ROD

Number Designation MODEL 212
BA46.40-P-1003-01N Inner tie rod to rack-and-pinion steering Nm 110
Fig 8: Identifying Guide Sleeve (210 589 01 14 00)
G09976673Courtesy of MERCEDES-BENZ USA
Fig 9: Identifying Open End Wrench (201 589 00 01 00)
G09976674Courtesy of MERCEDES-BENZ USA
Fig 10: Identifying Socket Wrench (203 589 04 31 03)
G09976675Courtesy of MERCEDES-BENZ USA
Fig 11: Identifying Drift (210 589 05 15 00)
G09976676Courtesy of MERCEDES-BENZ USA
Fig 12: Identifying Counter Stay (000 589 33 33 00)
G09976677Courtesy of MERCEDES-BENZ USA
Fig 13: Identifying Steering Gear Housing Support (221 589 01 31 00)
G09976678Courtesy of MERCEDES-BENZ USA
Fig 14: Identifying Torque Wrench (001 589 67 21 00)
G09976679Courtesy of MERCEDES-BENZ USA
Fig 15: Identifying Puller (000 589 28 33 00)
G09976680Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1067-06A Renolit JP1619 special grease A 001 989 38 51 10
scientia non olet · About LEMON Manuals
