Remove/install expansion reservoir - AR46.25-P-1000CMG
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204, 212 with ENGINE 156
| Remove/install | |||
| Risk of injury to skin or eyes caused by hydraulic fluid spraying out under high pressure. Risk of poisoning caused by swallowing hydraulic fluid Depressurize the hydraulic system completely before starting any work on the system. Wear protective clothing and safety glasses. | AS00.00-Z-0013-01A | ||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Remove left engine intake air duct and front engine cover | ||
| 2 | Pull air hose (3) off air shutoff valves (4l, 4r) and put to one side | ||

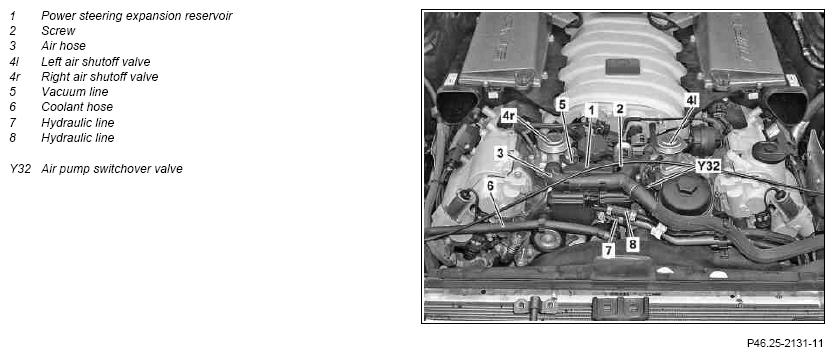

| 3 | Suction off oil from expansion reservoir (1) | Figure | |
| 4 | Unhook air pump switchover valve (Y32) from bracket | ||
| 5 | Loosen vacuum line (5) from expansion reservoir (1) | ||
| 6 | Unclip coolant water hose (6) from expansion reservoir (1) | ||
| 7 | Detach hydraulic lines (7, 8) from expansion reservoir (1) | ||
| Figure | |||
| 8 | Remove bolt (2) from expansion reservoir (1) | *BA46.30-P-1003-01R | |
| *BA46.30-P-1003-01T | |||
| 9 | Lift off expansion reservoir (1) | ||
| 10 | Install in the reverse order | ||
| 11 | Fill power steering pump and bleed | Model 204 | AR46.30-P-0010CW |
| Model 212 | AR46.30-P-0010EW | ||
| Checking | |||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 12 | Carry out visual inspection for leaks when engine is running |
POWER STEERING PUMP
| Number | Designation | Model 204 without engine 651 | |
|---|---|---|---|
| BA46.30-P-1003-01R | Expansion reservoir bolt | Nm | 9 |
POWER STEERING PUMP
| Number | Designation | Model 212 | |
|---|---|---|---|
| BA46.30-P-1003-01T | Expansion reservoir bolt | Nm | 9 |
