Remove/install Keyless Go control unit - AR80.35-P-0001EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0 with CODE 889 (Keyless Go)

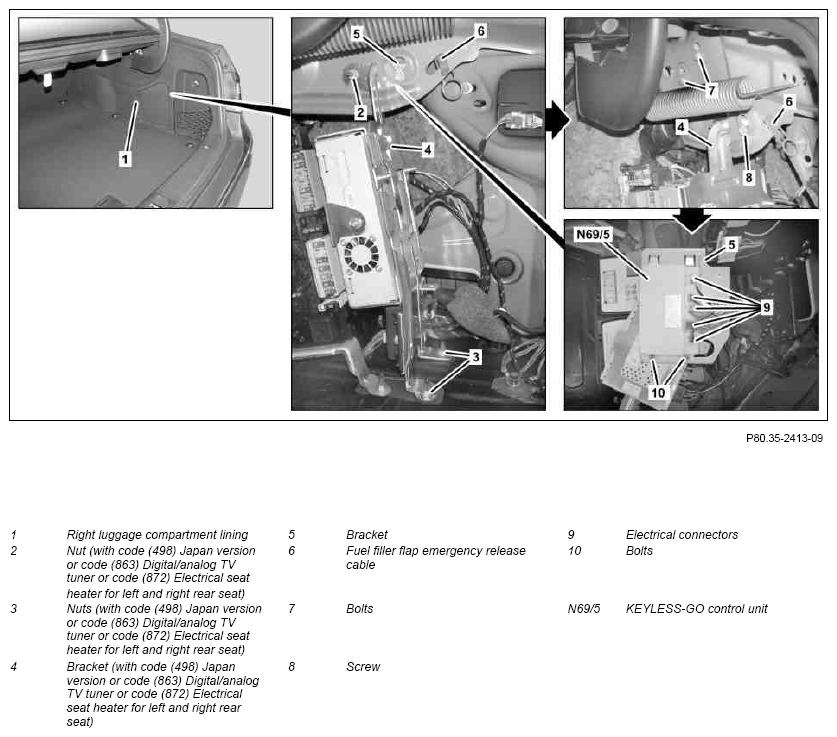

Fig 1: Keyless Control Unit Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Notes on sensor system for trunk lid opening/closing		AH80.61-P-0001-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Connect Star Diagnosis and perform initial startup of KEYLESS-GO control unit (N69/5)	When replacing KEYLESS-GO control unit (N695).
			AD00.00-P-2000-04A
2	Remove right luggage compartment lining (1)		AR68.30-P-4600EW
3	Loosen nut (2) from top of bracket (4), but do not unscrew fully	MODEL 212.0 with CODE 498 (Japanese version) with CODE 889 (Keyless Go) MODEL 212.0 with CODE 863 (Digital/analog TV tuner) with CODE 889 (Keyless Go) MODEL 212.0 with CODE 872 (Electrically heated left and right rear seats) with CODE 889 (Keyless Go)
4	Unscrew nuts (3) from bottom of bracket (4)	MODEL 212.0 with CODE 498 (Japanese version) with CODE 889 (Keyless Go) MODEL 212.0 with CODE 863 (Digital/analog TV tuner) with CODE 889 (Keyless Go) MODEL 212.0 with CODE 872 (Electrically heated left and right rear seats) with CODE 889 (Keyless Go)
5	Remove bracket (4) and lay down to side with lines connected	MODEL 212.0 with CODE 498 (Japanese version) with CODE 889 (Keyless Go) MODEL 212.0 with CODE 863 (Digital/analog TV tuner) with CODE 889 (Keyless Go) MODEL 212.0 with CODE 872 (Electrically heated left and right rear seats) with CODE 889 (Keyless Go)
6	Loosen bolts (7, 8) from bracket (5), do not unscrew completely
7	Remove bracket (5) with KEYLESS-GO control unit (N69/5)
8	Disconnect electrical connectors (9) and remove KEYLESS-GO control unit (N695) from trunk
9	Unscrew bolts (10) from KEYLESS-GO control unit (N69/5) and remove KEYLESS-GO control unit (N69/5) from bracket (5)	When replacing KEYLESS-GO control unit (N695).
10	Install in the reverse order
