Anti-theft alarm system (ATA (EDW)), function - GF80.50-P-0001FL
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 with CODE 551 (Anti-theft alarm system)
Antitheft alarm system (ATA [EDW]), general

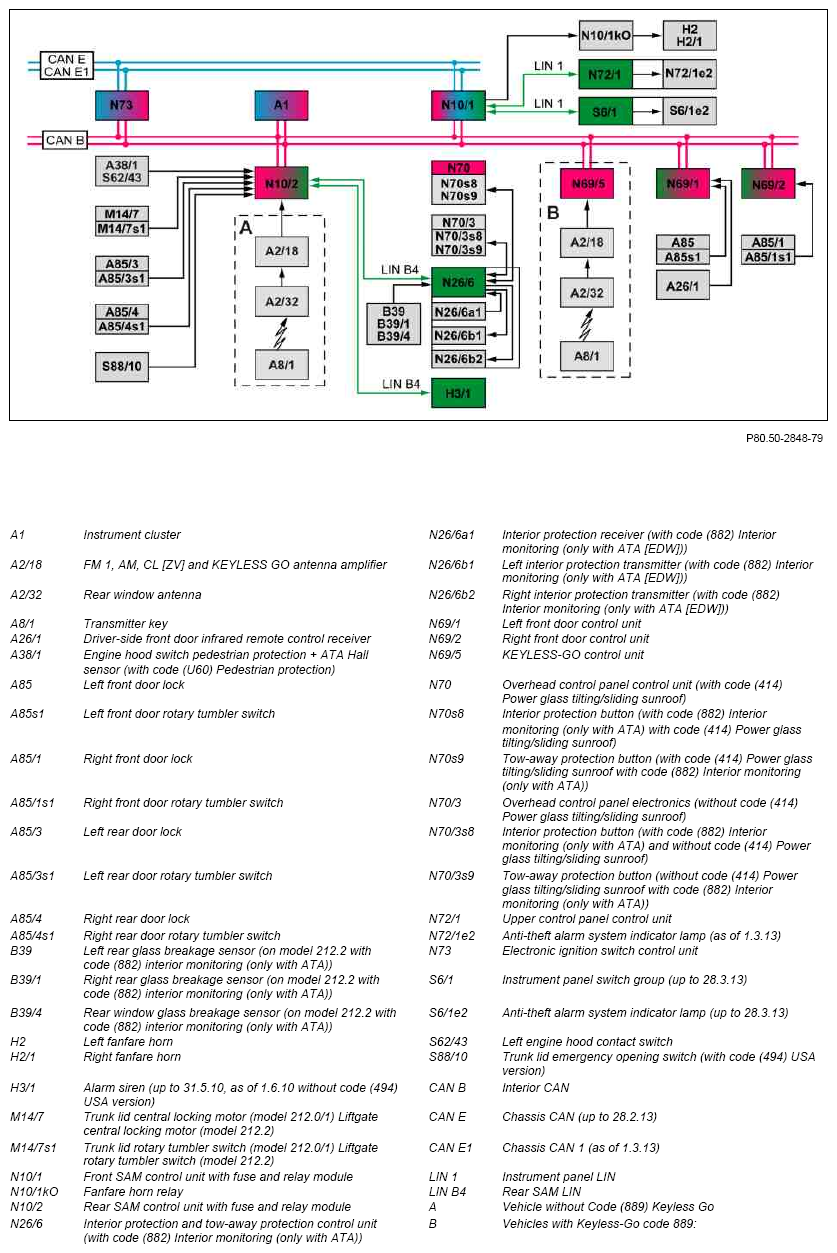

The ATA [EDW] monitors the non-actuated state of all relevant inputs after locking the vehicle with the central locking (CL). If a change of status is detected at one of the monitored inputs, an acoustic and visual alarm is given. The rear SAM control unit is the master control unit for the ATA [EDW].
The ATA [EDW], when armed, monitors:
- Doors
- Trunk lid (model 212.0/1) or liftgate (model 212.2)
- Engine hood
- Alarm siren (up to 31.5.10, as of 1.6.10 without code (494) USA version)
- Position change of vehicle (tow-away protection) (with code (882) Interior monitoring (only with ATA [EDW]))
- Motion in interior compartment (interior protection) (with code (882) Interior monitoring (only with ATA [EDW]))
- Rear side windows and rear window (model 212.2 with code (882) interior monitoring (only with ATA))
The ATA [EDW] includes the following partial functions described in separate documents:
- Activate antitheft alarm system, function
- Anti-theft alarm system trigger, function
- Alarm triggering by panic switch, function (with code (763) Radio remote control with panic switch)
| Activate antitheft alarm system, function | GF80.50-P-2002FL | ||
| Anti-theft alarm system trigger, function | GF80.50-P-2004FL | ||
| Triggering alarm with panic switch, function | MODEL 212 with CODE 551 (Anti-theft alarm system) with CODE 763 (Radio remote control with panic switch) | GF80.50-P-3014FLU |
