Remove/install spark plugs - AR15.12-P-1010CMG
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 156 in MODEL 204, 212

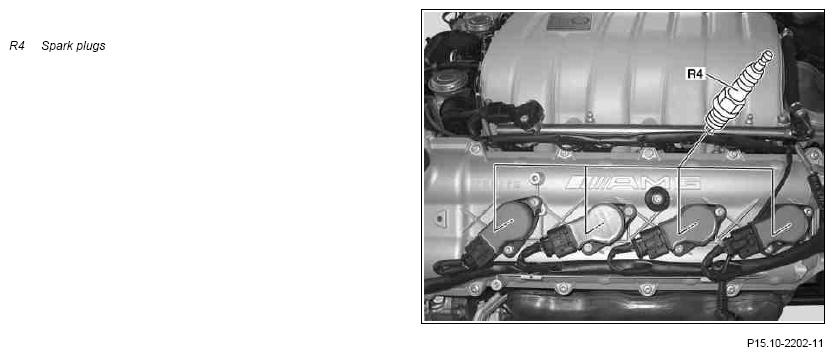

Shown on left cylinder head
| Remove/install | |||
| Risk of death caused by contact with parts conducting high voltages. | Do not touch parts which conduct high voltages. Persons who wear electronic implants (e.g. heart pacemakers) should never perform any work on the ignition system | AS15.10-Z-0001-01A | |
| Risk of injury to skin and eyes caused by handling hot or glowing objects. | Wear safety gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on avoiding damage to ignition system | AH15.10-P-0002-01D | ||
| 1 | Remove air filter housing | AR09.10-P-1150CMG | |
| 2 | Remove ignition coils | AR15.12-P-2003CMG | |
| 3 | Remove spark plugs (R4) from the cylinder heads | Spark plug socket wrench |
*BA15.10-P-1001-01H |
| 4 | Install in the reverse order | ||
| Checking | |||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 5 | Carry out engine test run |
SPARK PLUGS
| Number | Designation | Engine 156, 159 | |
|---|---|---|---|
| BA15.10-P-1001-01H | Spark plug on cylinder head | Nm | 22 |
