Remove/install camshaft Hall sensor - AR15.10-P-2000EL
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 276 in MODEL 212, 218
MODIFICATION NOTES
| 7.8.13 | Remove right air filter housing, added | Operation step 3.3 |
Shown on engine 276.9
| Remove/install | |||
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| 1 | Remove engine cover | ||
| 2 | Remove intake manifold (1) | ENGINE 276.9 When removing Hall sensors (B6/4, B6/6) on the left cylinder head |
|
| AR09.20-P-1961EL | |||
| 3.1 | Detach air filter housing (2) from cylinder head cover | ENGINE 276.9 When removing the RH Hall sensor on the exhaust camshaft (B6/7) |
|
| *BA09.10-P-1002-01M | |||
| *BA09.10-P-1001-01M | |||
| 3.2 | Remove left engine air intake duct with raw air line upstream of air filter housing | ENGINE 276.8 When removing the Hall sensor for the left exhaust camshaft (B6/6) |
|
| 3.3 | Remove right air filter housing | When removing the Hall sensor for the right exhaust camshaft (B6/7) | |
| ENGINE 276.8 | AR09.10-P-1150ELS | ||
| 4 | Detach connector from the respective camshaft Hall sensor (B6/4, B6/5, B6/6, B6/7) | ||

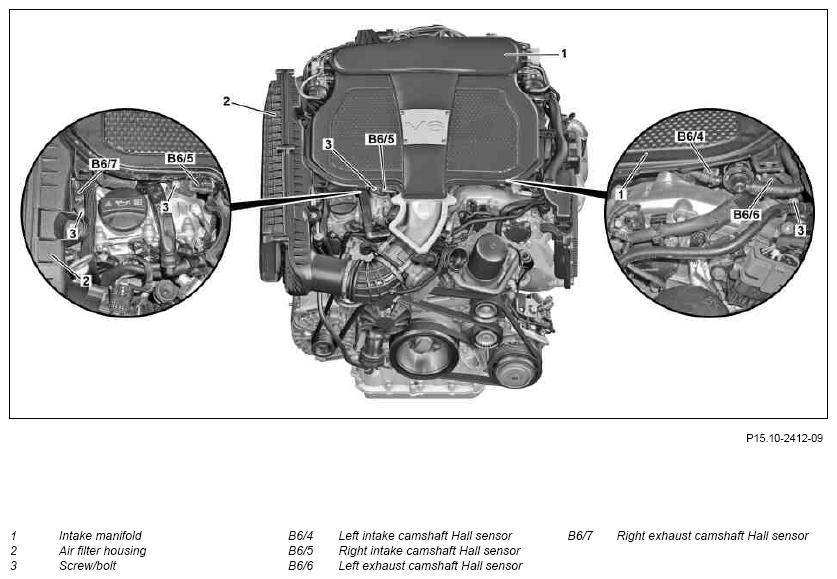

| 5 | Remove screw/bolt (3) and pull respective camshaft Hall sensor (B6/4, B6/5, B6/6, B6/7) out of the cylinder head cover | ||
| *BA15.10-P-1006-03E | |||
| 6 | Install in the reverse order | ||
| 7 | Read out fault memory using the diagnostic system and clear if necessary | ||
| AD00.00-P-2000-04A | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Carry out an engine test run, checking the engine for proper operation and leaktightness |
AIR FILTER
| Number | Designation | ENGINE 276.9 | |
|---|---|---|---|
| BA09.10-P-1001-01M | Bolt, air filter to cylinder head cover | Nm | 9 |
AIR FILTER
| Number | Designation | ENGINE 276.9 | |
|---|---|---|---|
| BA09.10-P-1002-01M | Bolt, air filter to air intake pipe support brace | Nm | 9 |
POSITION SENSOR
| Number | Designation | ENGINE 276 | |
|---|---|---|---|
| BA15.10-P-1006-03E | Bolt, camshaft Hall sensor to cylinder head cover | Nm | 9 |
