Remove/install charge air hoses - AR09.41-P-8619CD
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 651 in MODEL 166, 172, 204, 207, 212, 218, 221

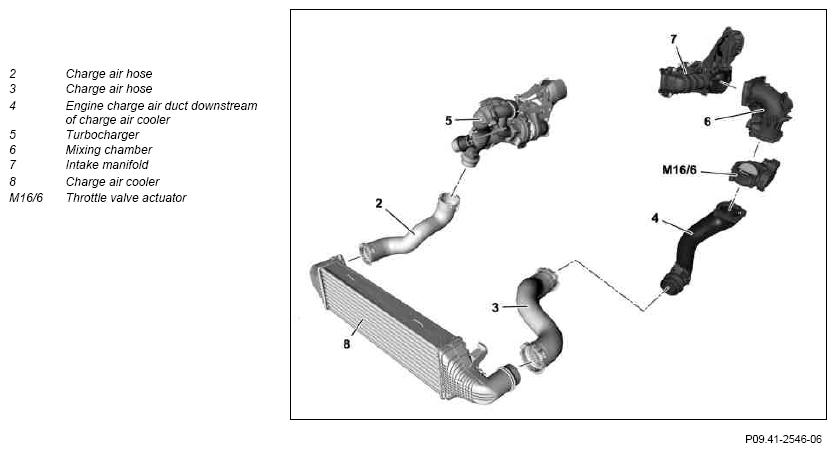

Illustration shows model 204
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Open engine hood | MODEL 166 | AR88.40-P-1000GQ |
| 2 | Remove engine air intake duct and turbocharger cooling duct upstream of air filter housing | MODEL 166 | |
| 3 | Remove bottom sections of soundproofing | MODEL 166 | AR61.30-P-1001GQ |
| MODEL 172 | AR94.30-P-5300W | ||
| MODEL 204.0/2/3, 207, 212, 218 | AR94.30-P-5300EW | ||
| MODEL 204.9 | AR61.20-P-1105CY | ||
| MODEL 221 | AR61.20-P-1105SX | ||

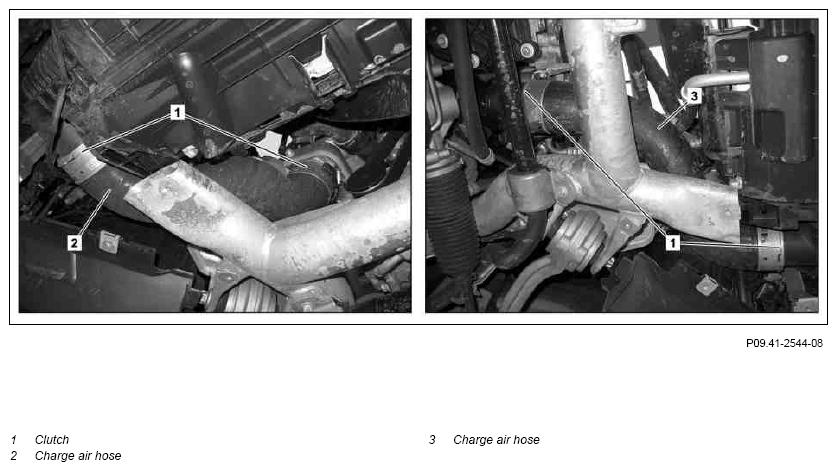

| 4 | Remove charge air hose (2) upstream of charge air cooler (8) | AR09.41-P-1311-01AL | |
Do not use any lubricant. There is otherwise the danger that the charge air hose (2) will slip off upstream of the charge air cooler (8) during operation. Any existing oil residues must be thoroughly removed from the charge air hose (2) and the charge air duct before assembly. There is otherwise the danger that the charge air hose (2) will slip off during operation. |
|||
| 5 | Remove charge air hose (3) downstream of charge air cooler (8) | AR09.41-P-1311-01AL | |
Do not use any lubricant. There is otherwise the danger that the charge air hose (3) will slip off upstream of the charge air cooler (8) during operation. Any existing oil residues must be thoroughly removed from the charge air hose (3) and the charge air duct before assembly. There is otherwise the danger that the charge air hose (3) will slip off during operation. |
|||
| 6 | Install in the reverse order |
