Remove/install charge air hose upstream of charge air cooler - AR09.41-P-8621SXI
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 642 in MODEL 212, 218, 221
Shown on engine 642.910

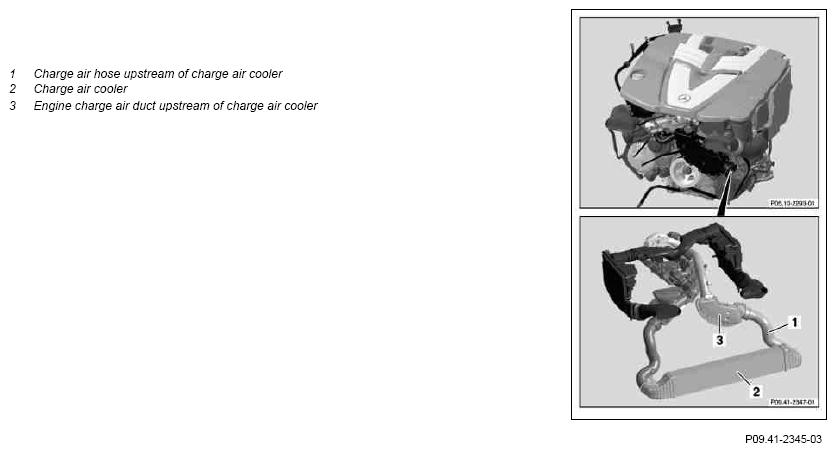

Fig 1: Charge Air Hose Upstream Of Charge Air Cooler Remove/Install Components - Shown On Engine 642.910
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Remove bottom sections of soundproofing | Model 221 except code Z07 (Highest protection) | AR61.20-P-1105SX |
| MODEL 212, 218 | AR94.30-P-5300EW | ||
| 2 | Seal off charge air hose upstream of charge air cooler (1) at charge air cooler (2) | AR09.41-P-1311-01AL | |
Thoroughly clean the connections, check for damage and correct seating of the sealing rings and catch springs, replace if necessary. Leaks can occur otherwise. |
|||
| 3 | Remove belt drive cover | ||
| 4 | Remove engine intake air duct upstream of the LH air filter housing | Model 212, 218 | |
| 5 | Seal off charge air hose upstream of charge air cooler (1) at engine charge air channel downstream of charge air cooler (3) | AR09.41-P-1311-01AL | |
Thoroughly clean the connections, check for damage and correct seating of the sealing rings and catch springs, replace if necessary. Leaks can occur otherwise. |
|||
| 6 | Install in the reverse order |
