Remove/install brake booster vacuum line - AR43.10-P-0355EH
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.095/195 with ENGINE 276.9
MODEL 212.098/298 with ENGINE 651.9

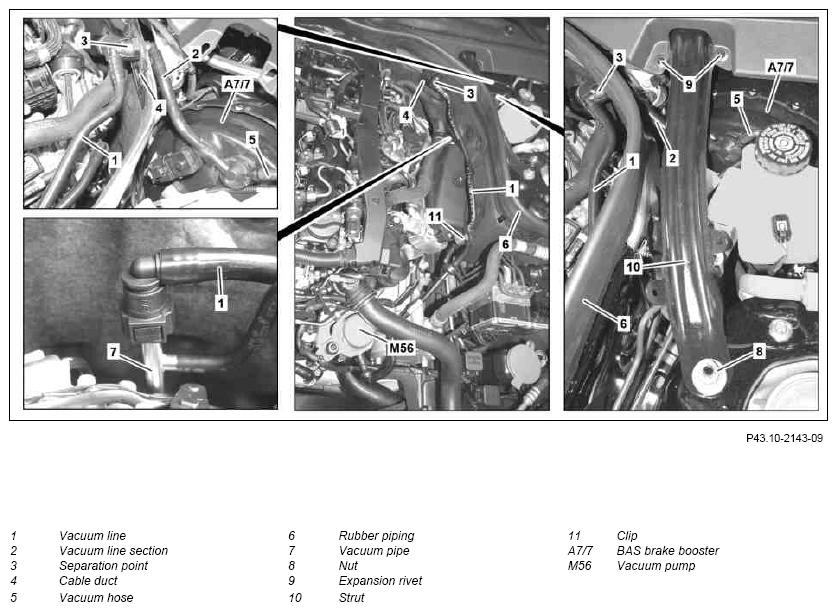

Engine 651.9

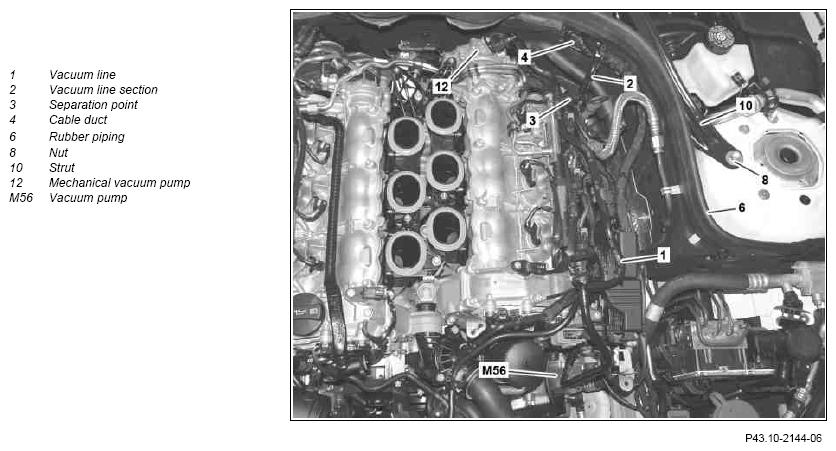

Engine 276.9
| Remove/install | |||
| 1 | Switch off ignition | ||
| 2 | Push down brake pedal several times | ||
| 3 | Open engine hood and raise to vertical position | AR88.40-P-1000EW | |
| 4.1 | Remove cylinder head cover trim | ENGINE 651.9 | |
| 4.2 | Remove resonance intake manifold | ENGINE 276.9 | |
| AR09.20-P-1961EL | |||
| 5 | Separate vacuum line (1) from vacuum line section (2) at separating point (3) | ||
| 6 | Release and disconnect vacuum line (1) at vacuum pump (M56) | ||
| 7.1 | Release and disconnect vacuum line (1) at vacuum pipe (7) | ENGINE 651.9 | |
| 7.2 | Release and disconnect vacuum line (1) at mechanical vacuum pump (12) | ENGINE 276.9 | |
| 8 | Disconnect vacuum line (1) from clip (11) | ENGINE 651.9 | |
| 9 | Remove vacuum line (1) | ||
| 10 | Remove expansion rivet (9) | Only when removing vacuum line section (2). | |
| 11 | Unscrew nut (8) and remove strut (10) to the front | Only when removing vacuum line section (2). | |
| *BA62.30-P-1006-02G | |||
| 12 | Detach rubber edge strip (6) | Only when removing vacuum line section (2). | |
| 13 | Detach vacuum hose (5) | ENGINE 651.9 Only when removing vacuum line section (2). |
|
| 14 | Pry vacuum line section (2) out of seal plug of BAS brake booster (A7/7) | Only when removing vacuum line section (2). |
|
| 15 | Release cable duct (4) and remove upwards together with vacuum line section (2) | Only when removing vacuum line section (2). | |
| 16 | Install in the reverse order | ||
| 17 | Carry out brake test on the test stand | ||
| AP42.00-P-4290BA |
FRONT END WITH FRONT REINFORCEMENT
| Number | Designation | MODEL 212 | |
|---|---|---|---|
| BA62.30-P-1006-02G | Nut, strut to suspension strut tower | Nm | 30 |
