Preparations for distance and comparison measurements - AR40.30-P-0401EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212, 218

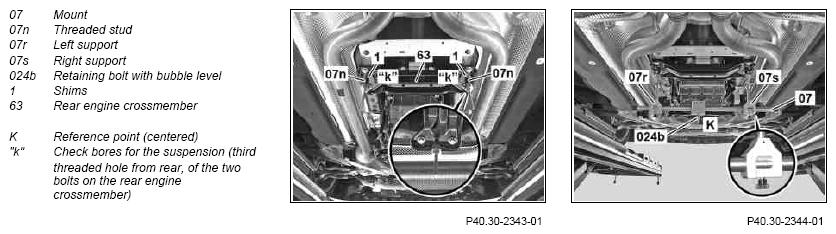

Fig 1: Rear Engine Crossmember Distance
G09976458Courtesy of MERCEDES-BENZ USA

Shown here is SPECIAL TOOLholding pipe 170 589 00 63 01

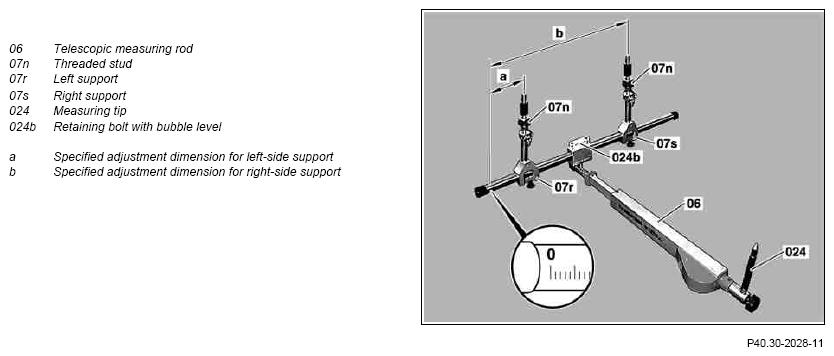

Fig 2: Left/Right Side Support Adjustment Dimension
G09976459Courtesy of MERCEDES-BENZ USA
MODIFICATION NOTES

21.10.11 Value changed: screw/bolt, rear engine support to frame floor assembly   *BA22.10-P-1005-03E
16.12.11 New holding pipe SPECIAL TOOL 164 589 04 63 00 added IMPORTANT The holding pipe SPECIAL TOOL 164 589 04 63 00 can be used as an alternative to the holding pipe SPECIAL TOOL 170 589 00 63 01. AR40.30-P-0401-01EW
REMOVING Removing
1 Align the vehicle IMPORTANT Align the vehicle horizontally in the longitudinal direction by loading with weights as appropriate.
Measure vehicle inclination across the door sills, e.g. using a spirit level
2.1 Remove engine compartment panels Vehicles with gasoline engine AR61.20-P-1105EW
2.2 Remove bottom section of soundproofing Vehicles with diesel engine AR94.30-P-5300EW
3 On the rear engine crossmember (63) remove the two bolts at the third threaded hole from the rear
4 Turn in threaded bolts (07n) of suspension (07) with shims (1) IMPORTANT Use washers (1), to ensure that the threaded stud (07n) fits correctly into the rear engine crossmember (63).
SPECIAL TOOL Figure
5 Insert and adjust hanger (07)   AR40.30-P-0401-01EW
SPECIAL TOOL Figure
SPECIAL TOOL Figure
6 Insert telescopic measuring rod (06) with connecting parts onto retaining bolt using bubble level (024b) IMPORTANT Use relevant measuring bolt and measuring tip (024) for the corresponding distance or comparison measurement.
SPECIAL TOOL Fig 7
SPECIAL TOOL Fig 4
SPECIAL TOOL Fig 5
SPECIAL TOOL Fig 6
MEASURING Measure
7 Carry out distance and comparison measurements on front and rear axles   AR40.30-P-0402CW
INSTALLING Install
8 Detach cradle (07) and threaded bolts (07n) SPECIAL TOOL Figure
9 Screw in bolts of rear engine crossmember (63) TORQUE SPECIFICATION *BA22.10-P-1005-03E
10.1 Install engine compartment paneling. Vehicles with gasoline engine AR61.20-P-1105EW
10.2 Install bottom sections of soundproofing Vehicles with diesel engine AR94.30-P-5300EW
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number Designation Model 212 except 4MATIC Model 212 4
BA22.10-P-1005-03E Bolt, rear engine support to frame floor assembly Nm 70 70
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number Designation Model 218 except 4MATIC Model 218 4MATIC
BA22.10-P-1005-03E Bolt, rear engine support to frame floor assembly Nm 70 70
Fig 3: Identifying Mount (170 589 00 63 00)
G09976460Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Telescopic Measuring Rod (124 589 01 19 00)
G09976461Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Telescopic Measuring Rod (124 589 02 19 00)
G09976462Courtesy of MERCEDES-BENZ USA
Fig 6: Identifying Set Of Measurement Fixtures (168 589 07 63 00)
G09976463Courtesy of MERCEDES-BENZ USA
Fig 7: Identifying Connecting Pieces (124 589 08 63 00)
G09976464Courtesy of MERCEDES-BENZ USA
Fig 8: Identifying Retaining Tube (164 589 04 63 00)
G09976465Courtesy of MERCEDES-BENZ USA
