Remove/install park pawl actuator - AR27.60-P-0956EH

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 724.2

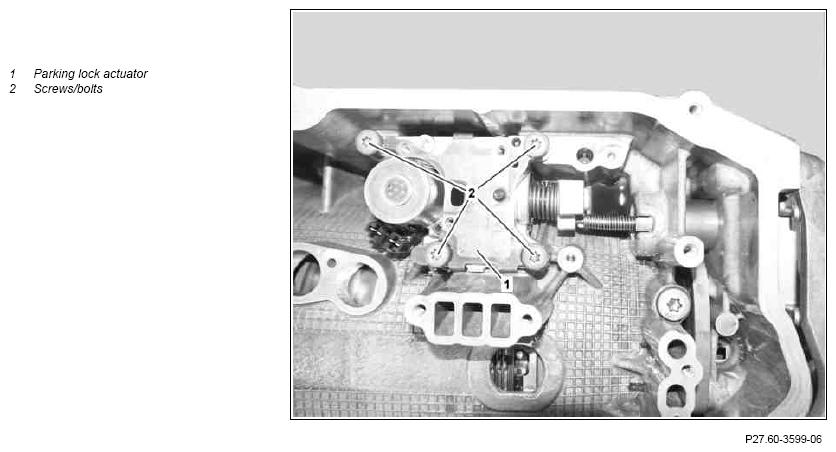

Fig 1: Park Pawl Actuator Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Notes on automatic transmission		AH27.19-P-0001-01NKB
1	Remove electrohydraulic controller unit (transmission installed)		AR27.19-P-0200EH
1		Cleanliness is essential when working on the transmission. Otherwise, even the smallest foreign particle in the hydraulic components of the transmission can lead to malfunctions or a total failure of the transmission. For cleaning, use lint-free cleaning cloth. Chamois leathers are the most suitable.	AR27.19-P-0200EH
2	Remove screws/bolts (2) and remove parking lock actuator (1)	Replace screws/bolts (2).
2		Bolt, park pawl actuator to transmission housing	*BA27.19-P-1005-01C
3	Install in the reverse order

COMPLETE AUTOMATIC TRANSMISSION

Number	Designation			TRANSMISSION 724.2
BA27.19-P-1005-01C	Bolt, park pawl actuator to transmission housing	Stage 1	Nm	4
BA27.19-P-1005-01C	Bolt, park pawl actuator to transmission housing	Stage 2	∠°	90
