Remove/install valve springs and/or valve stem seals - AR05.30-P-3500SXI

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 642 in MODEL 207, 212, 218, 221, 222

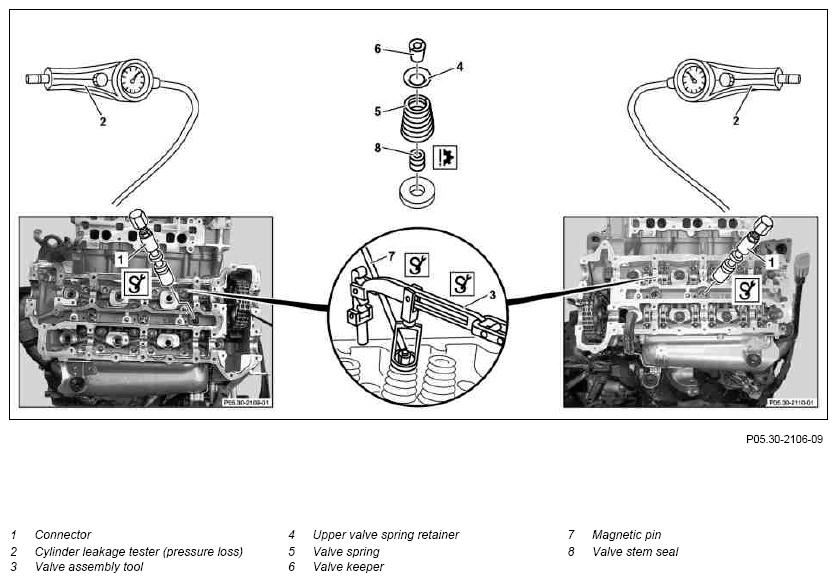

Fig 1: Valve Springs Remove/Install Components (1 Of 2)
G09974431Courtesy of MERCEDES-BENZ USA

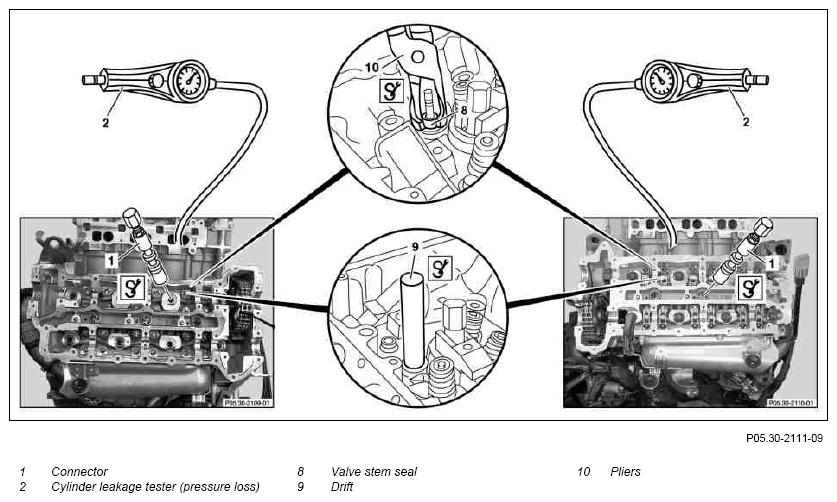

Fig 2: Valve Springs Remove/Install Components (2 Of 2)
G09974432Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
1 Remove camshafts ENGINE 642 in MODEL 222 AR05.20-P-6992LFD
    ENGINE 642 in MODEL 207, 212, 218, 221 AR05.20-P-6992SXI
2 Remove compensation elements   AR05.00-P-2011SXI
3 Position piston of cylinder to be machined at top dead center (TDC) IMPORTANT Rotate engine at crankshaft in direction of engine rotation.
4 Connect cylinder leakage tester (2) to cylinder to be processed IMPORTANT Connect adapter "R14" from the compression pressure recorder set with the connector (1) and insert connector (1) into the injector bore. the connection piece (1) is secured using the original clamping claw.
IMPORTANT Remove check valve. Subject compression chamber of cylinder to a pressure of about 5 bar.
Cylinder leakage tester (pressure loss)

    SPECIAL TOOL Compression tester Fig 4
    SPECIAL TOOL Connector Figure
5 Put together assembly tool valves (3) and install on the cylinder head IMPORTANT Screw in retaining fork at edge of cylinder head in the thread and fit thrust piece vertically on the upper valve spring retainer (4).
    SPECIAL TOOL Depressor Fig 9
    SPECIAL TOOL Valve assembly tools kit Figure
6 Press together valve spring (5) with assembly tool valves (3) SPECIAL TOOL Valve assembly tools kit Figure
7 Remove valve keepers (6) IMPORTANT Use magnetic pin (7).
INSTALLATION IMPORTANT Ensure the valve keepers (6) are reliably seated.

    SPECIAL TOOL Magnetic pin Figure
8 Remove upper valve spring retainer (4) and valve springs (5) INSTALLATION IMPORTANT Valves must not rest on the piston crown. Check upper valve spring retainer (4) for pitting; replace if required.
9 Remove valve stem seals (8) with pliers (10)   AR05.30-P-3500-02TI
    INSTALLATION IMPORTANT Check valve stems for ridging, remove burrs if required. Oil valve stem seals (8) and press on with an assembly drift (9).
    SPECIAL TOOL Pliers Figure
    SPECIAL TOOL Drift Figure
10 Install in the reverse order
DANGER Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
11 Check for oil leaks with engine running
Fig 3: Identifying Magnetic Pin (210 589 00 40 00)
G09974433Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Compression Tester (001 589 78 21 00)
G09974434Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Valve Assembly Tools Kit (111 589 25 61 00)
G09974435Courtesy of MERCEDES-BENZ USA
Fig 6: Identifying Drift (604 589 00 43 00)
G09974436Courtesy of MERCEDES-BENZ USA
Fig 7: Identifying Pliers (606 589 00 37 00)
G09974437Courtesy of MERCEDES-BENZ USA
Fig 8: Identifying Connector (611 589 00 63 00)
G09974438Courtesy of MERCEDES-BENZ USA
Fig 9: Identifying Depressor (640 589 00 61 00)
G09974439Courtesy of MERCEDES-BENZ USA
