Remove/install solenoid camshaft - AR05.20-P-7295ELB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 157, 278 in MODEL 212, 218
ENGINE 278 in MODEL 207

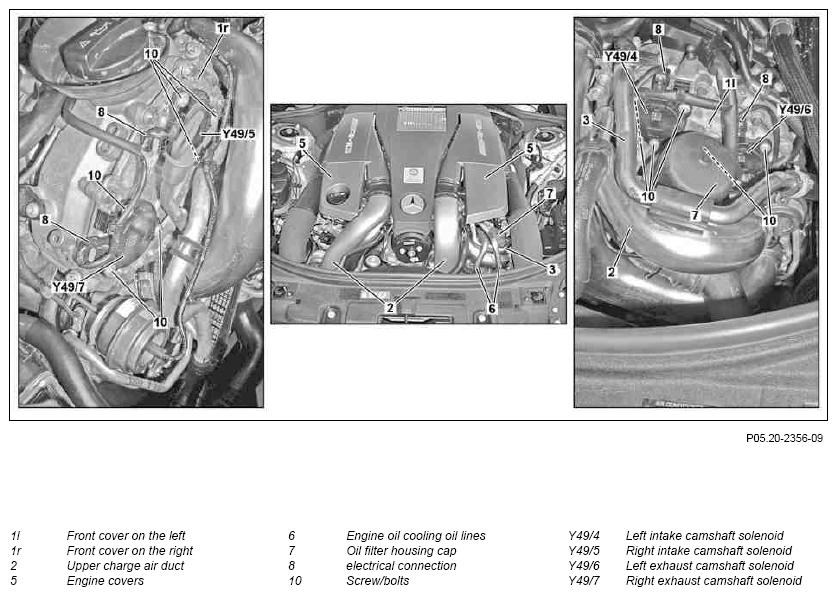

Shown on model 218.373 without code 139 (Measures for engine cooling M157/M278)
| Remove/install | |||
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| 1 | Remove engine covers (5) | ||
| 2 | Remove right upper charge air duct (2) | Only for removal of the right intake camshaft solenoid (Y49/5) | AR09.41-P-8620ELB |
| 3 | Remove oil filter housing | Vehicles with code (139) Measures for engine cooling to remove the intake camshaft solenoid on the left (Y49/4) |
AR18.20-P-3471ELB |
| Fig 2 | |||
| 4 | Detach oil filter housing cover (7) | Only for removal of the left exhaust camshaft solenoid (Y49/6) | |
| ENGINE 278 in MODEL 207, 212, 218 | AP18.00-P-0101EW | ||
| ENGINE 157 in MODEL 212, 218 |
AP18.00-P-0101EWG | ||
| 5 | Disconnect electrical connection (8) from the respective solenoid (Y49/4, Y49/5, Y49/6, Y49/7) | ||
| 6 | Remove screw/bolts (10) and take out the respective solenoid (Y49/4, Y49/5, Y49/6, Y49/7) from the front cover (1l, 1r) | ||
| Notes on threaded connections with aluminum screws/bolts | AH00.00-P-0006-01RM | ||
| *BA05.20-P-1008-02A | |||
| 7 | Install in the reverse order | ||
| Check | |||
| 8 | Check engine oil level; correct if necessary | ||
| ENGINE 278 in MODEL 207, 212, 218 | AP18.00-P-0101EW | ||
| ENGINE 157 in MODEL 212, 218 | AP18.00-P-0101EWG | ||
| 9 | Read out fault memory with STAR DIAGNOSIS and delete if necessary | ||
| AD00.00-P-2000-04A | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 10 | Carry out an engine test run, checking the engine for proper operation and leaktightness |
CAMSHAFT, CAMSHAFT ADJUSTMENT
| Number | Designation | ENGINE 157 | ENGINE 278 | |
|---|---|---|---|---|
| BA05.20-P-1008-02A | Screw/bolt, camshaft solenoid to front cover on cylinder head | Nm | 5 | 5 |
