Remove/install charge air ducts - AR09.41-P-8620ELB

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 157, 278 in MODEL 212, 218

ENGINE 278 in MODEL 207

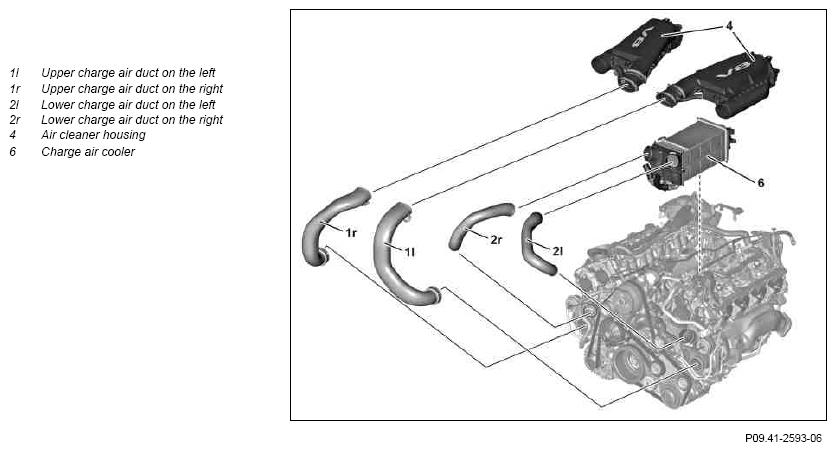

Fig 1: Charge Air Ducts Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
1	Remove engine covers
2	Loosen clamp between upper charge air duct (1l, 1r) and air filter housing (4)	The boot between the upper charge air duct (1l, 1r) and air filter housing (4) remains on the air filter housing (4).
3	Loosen clamp between upper charge air duct (1l, 1r) and turbocharger	The boot between turbocharger and upper charge air duct (1l, 1r) remains on the upper charge air duct (1l, 1r).
4	Remove screw/bolt for upper charge air duct (1l, 1r) on cylinder head cover	Bolt, charge air manifold to front cover/oil filter housing/cylinder head/cylinder head cover	*BA09.40-P-1008-01R
5	Remove upper charge air duct (1l, 1r)	Plug openings.
5	Remove upper charge air duct (1l, 1r)	Set of protective caps	Fig 2
6	Remove air filter housing (4)
7	Detach engine oil cooling oil lines from oil filter housing and bracket on engine and lay to the side outside the working area	Vehicles with code (139) Measures for engine cooling M157/M278 Seal openings using stop plugs. Replace sealing rings and clean connection area of the oil lines.
7		Record plug	Figure
8	Loosen clamp between lower charge air duct (2l, 2r) and charge air cooler (6)	The boot between lower charge air duct (2l, 2r) and charge air cooler (6) remains on the charge air cooler (6).
9	Loosen clamp between lower charge air duct (2l, 2r) and turbocharger	The boot between lower charge air duct (2l, 2r) and turbocharger remains on the turbocharger.
10	Remove screw/bolts for right lower charge air duct (2r) from cylinder head	When removing the right lower charge air duct (2r)
10		Bolt, charge air manifold to front cover/oil filter housing/cylinder head/cylinder head cover	*BA09.40-P-1008-01R
11	Remove screw/bolts for lower charge air duct on the left (2l) from cylinder head and oil filter housing	When removing the left lower charge air duct (2r)
11		Bolt, charge air manifold to front cover/oil filter housing/cylinder head/cylinder head cover	*BA09.40-P-1008-01R
12	Remove lower charge air duct (2l, 2r)	Plug openings.
12	Remove lower charge air duct (2l, 2r)	Set of protective caps	Fig 2
	Check
13	Check boot and rubber seal for cracks or damage and replace if necessary
14	Check clamps for damage and replace as necessary.
15	Install in the reverse order
	Check
	Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
16	Carry out an engine test run, checking the engine for proper operation and leaktightness

TURBOCHARGER

Number	Designation		ENGINE 157	ENGINE 278
BA09.40-P-1008-01R	Bolt, charge air manifold to front cover/oil filter housing/cylinder head/cylinder head cover	Nm	9	9

Fig 2: Identifying Set Of Protective Caps (001 589 02 91 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
