Remove/install water drain rail for sliding roof - AR77.20-P-1997CW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204.0/2 with CODE (414) Power glass tilting/sliding roof

MODEL 212 with CODE (414) Power glass tilting/sliding roof up to model year 2011

Shown on model 204.0

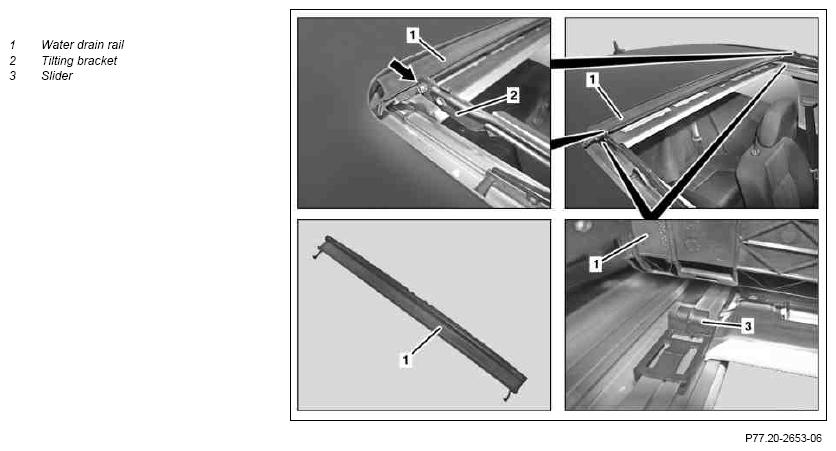

Fig 1: Water Drain Rail For Sliding Roof Remove/Install Components - Shown On Model 204.0

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove tilting/sliding roof panel		AR77.20-P-2852CW
2	Unclip water drain rail (1) from left and right tilting bracket (2) (arrow)
3	Unclip water drain rail (1) from left and right slider (3) and remove.	When water drain rail (1) is removed, do not move tilting/sliding roof toward rear. This can cause the sliders (3) to be pushed toward the rear making it necessary to preposition them toward the front with great effort.
4	Install in the reverse order
