Remove/install glass roof on tilting/sliding roof - AR77.20-P-2852CW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0/2, 212, 218 with CODE 414 (Power glass tilting/sliding roof)
Shown on model 204.0
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove | |||

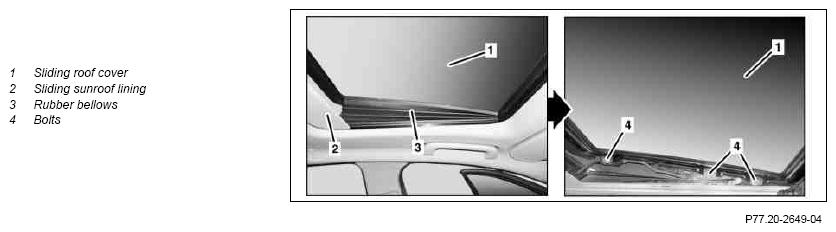

| 1 | Move sliding roof cover (1) to tilt position | ||
| 2 | Completely open sliding roof lining (2) | ||
| 3 | Remove left and right rubber bellows (3) from front toward rear | Do not damage or bend rubber bellows (3). ↓ Straighten rubber bellows (3), if necessary replace rubber bellows (3). |
|
| 4 | Loosen center bolt (4), do not unscrew completely | ||
| 5 | Unscrew front and rear bolts (4) | ||
| 6 | Remove sliding roof cover (1) | ||
| Install | |||
| 7 | Insert sliding roof cover (1) and screw in bolts (4) | ||
| 8 | Adjust sliding roof cover (1) and complete vehicle | AR77.20-P-1100CW |
