Remove/install seal of glass roof on rear panoramic roof - AR77.21-P-0620EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166, 212.0/1 with CODE (413) Panoramic glass roof with top sliding roof

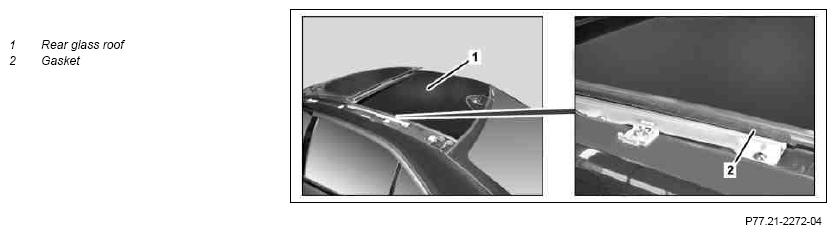

Shows model 212.1
| Removing | |||
| 1.1 | Remove front glass roof | Model 166 | AR77.21-P-0500GQ |
| 1.2 | Remove left and right drip rail on panoramic roof | Model 212.0, 212.1 | AR88.80-P-4000EW |
| 2 | Move front glass roof to tilt position | Model 212.0, 212.1 | |
| 3 | Pull seal (2) out of groove on rear glass roof (1) | ||
| Install | |||
| 4 | Clean and lubricate seal (2) on rear glass roof (1) | Antifriction agent | *BR00.45-Z-1010-06A |
| 5 | Align seal (2) with rear glass roof (1) and insert in groove of rear glass roof (1) | ||
| Figure | |||
| 6 | Close front glass roof | Model 212.0, 212.1 | |
| 7.1 | Install left and right drip rail on panoramic roof | Model 212.0, 212.1 | AR88.80-P-4000EW |
| 7.2 | Install front glass roof | Model 166 | AR77.21-P-0500GQ |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1010-06A | Lubricant, rubber assembly 1 l | A 000 989 03 67 |
