Remove/install panoramic roof wind deflector - AR77.21-P-0100EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.3, 207.3, 212.0/1/2 with CODE (413) Panoramic glass roof with top sliding roof

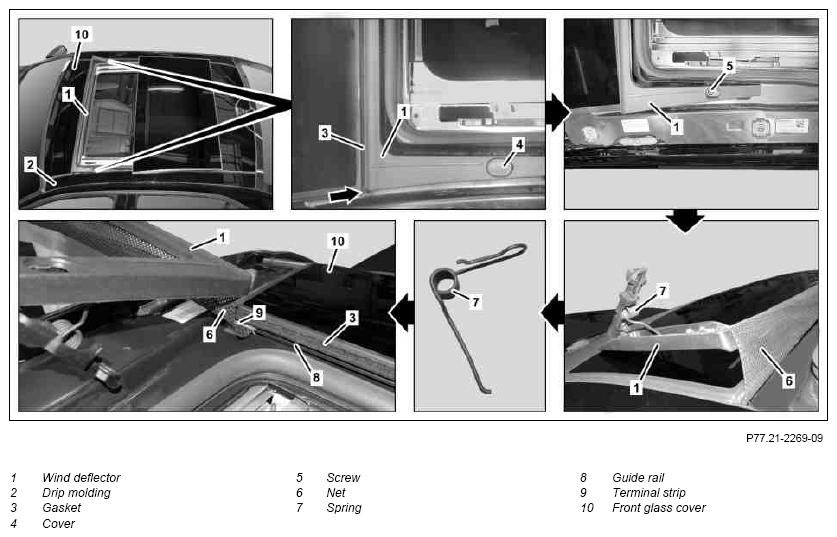

Shown on model 212.0
| Remove/install | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Open front glass cover | ||
| 2 | Remove cover (4) and screws (5) | ||
| 3 | Check seal (3) for front glass cover (10), replace if necessary. | ||
| Lubricant, rubber assembly 1 l | *BR00.45-Z-1010-06A | ||
| 4 | Lie wind deflector (1) forwards and remove springs (7) | Only when replacing springs (7). | |
| 5 | Remove left drip rail (2) on panoramic roof | AR88.80-P-4000EW | |
| 6 | Pull the terminal strip (9) found on the mesh (6) of the wind deflector (1) out to the left of the guide rail (8) and remove wind deflector (1) | ||
| 7 | Install in the reverse order |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1010-06A | Lubricant, rubber assembly 1 l | A 000 989 03 67 |
