Remove/install paneling on tilting/sliding roof - AR77.20-P-0500CW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0/2, 212, 218 with CODE (414) Power glass tilting/sliding roof

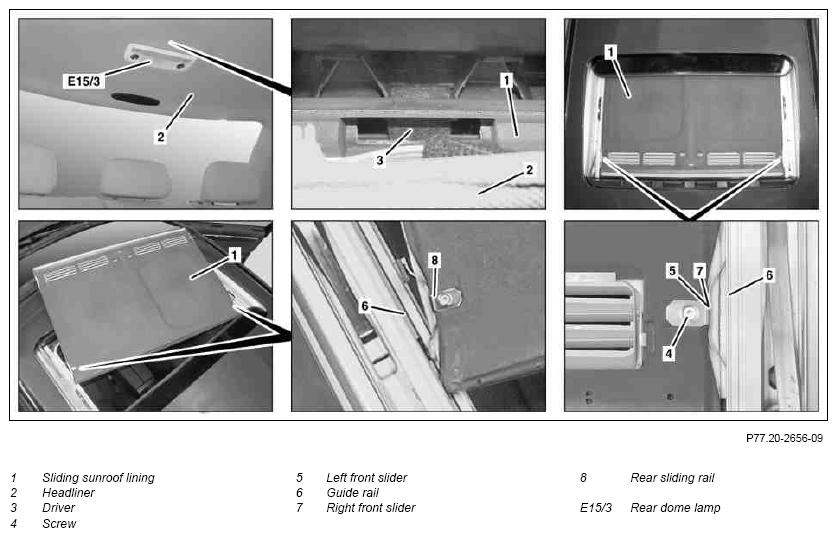

Shown on model 204.0
| Remove/install | |||
| 1.1 | Fully open tilting/sliding roof | Model 204.0/2 Model 212 up to model year 2011 |
|
| 1.2 | Remove tilting/sliding roof panel | Model 212 as of model year 2012 Model 218 |
AR77.20-P-2852CW |
| 2 | Remove rear dome lamp (E15/3) from headliner (2) and allow to hang down with electrical line connected | Model 204.0/2 Model 212 up to model year 2011 |
|
| 3 | Separate sliding roof lining (1) from driver (3) downward | Model 204.0/2 Model 212 up to model year 2011 |
|
| 4 | Slide sliding roof lining (1) toward front until left front slider (5) and right front slider (7) are accessible | Model 204.0/2 Model 212 up to model year 2011 |
|
| 5 | Unscrew bolt (4) from left front slider (5) | Model 204.0/2 Model 212 up to model year 2011 |
|
| 6 | Tilt left front slider (5) upward and outward and remove from guide rail (6) | Model 204.0/2 Model 212 up to model year 2011 |
|
| 7 | Unhook right front slider (7) from guide rail (6) | Model 204.0/2 Model 212 up to model year 2011 |
|
| 8.1 | Carefully push sliding roof lining (1) toward front and guide out of left and right guide rail (6) toward front at an angle | Model 204.0/2 Model 212 up to model year 2011 |
|
| 8.2 | Push sliding roof frame (1) toward front and remove from guide rail (6) with assembly wedge | Model 212 as of model year 2012 Model 218 |
|
| Fig 2 | |||
| 9 | Install in the reverse order |
